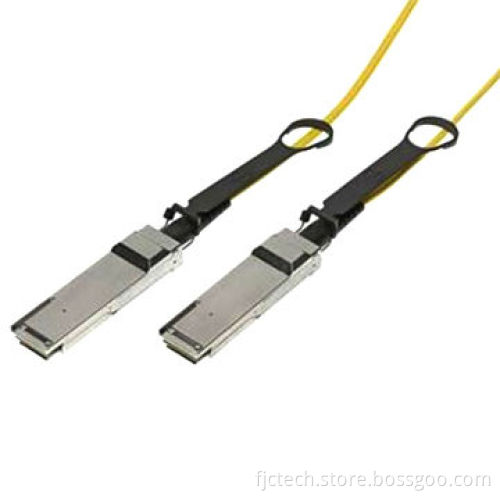

40G QSFP+ SR4 150m Optical Transceiver, 3.3V Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Transmission data rate: up to 10.3Gbps/s per channel

4-ch 850nm VCSEL array

4-ch PIN photo detector array

Low power consumption: <1.5W

Housing isolated from connector ground

Operating case temperatures: 0 to +70°C

Voltage: 3.3V

RoHS directive-compliant

Hot pluggable QSFP form factor

Maximum link length: 100m on OM3 multimode fiber (MMF) and 150m on OM4 MMF

Single MPO connector receptacle

Built-in digital diagnostic functions

Applications:

Optical fiber channel

40GBASE-SR4 40G Ethernet

Datacom/telecom switch and router connections

Data aggregation and backplane applications

Proprietary protocol and density applications
