DC Motors for Drill and Garden Tool
  • DC Motors for Drill and Garden Tool
DC Motors for Drill and Garden Tool

DC Motors for Drill and Garden Tool

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description

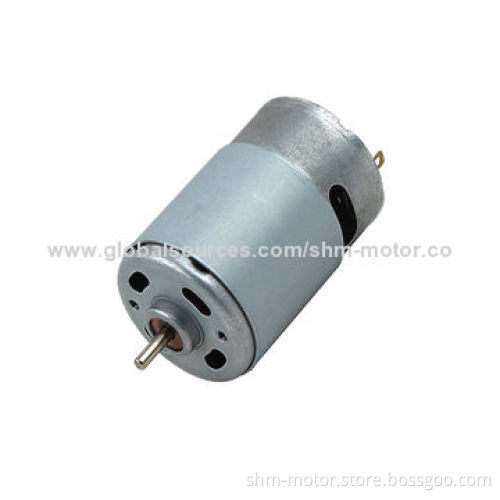

  • Type: carbon-brush motor
  • Diameter: 27.7mm, Length: 46.5mm
  • Diameter of Shaft: 10mm
  • Output: approximately 5.0 to 120W
  • Operating range voltage: 6 to 14.4V
  • Rated voltage: 12V
  • No-load:
    • Speed: 28,000rpm
  • Current: 0.91A
  • At maximum efficiency:
  • Torque: 150g.cm
  • Current: 5.11A
  • Speed: 23665rpm
  • Output: 36.4W
  • At Stall:
    • Torque: 6,000g.cm
    • Current: 85A
  • Typical applications: drill, screwdriver, air compressor, cordless garden tool, ride toys, washer pump, power brush and RC model and more
  • Compliant with CE standard and the RoHS Directive
  • Speed: 28,000rpm
  • Torque: 6,000g.cm
  • Current: 85A
