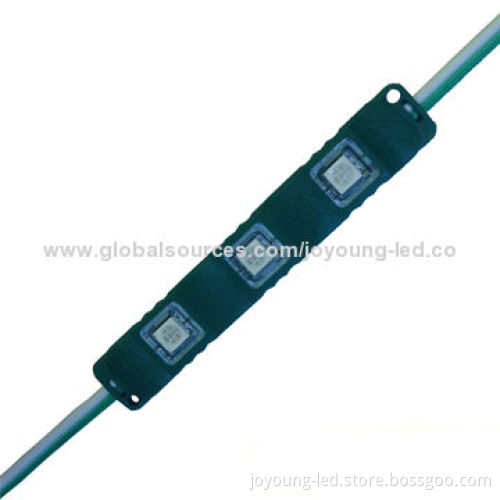

3-piece Water-resistant 5050 Injected LED Module Lights with PC Cover, 18-20lm, 12V, IP67

3-piece Water-resistant 5050 Injected LED Module Lights with PC Cover, 18-20lm, 12V, IP67

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Specifications:

Power: 0.75W
Input voltage: 12V DC
Color: green
LED type: 5050 SMD
LED quantity: 3 pieces
Dimension: 73 x 12.5 x 7mm
Weight: 10kg, ±5%/1,000 pieces
Cover: plastic and PCB
Working temperatures: -40 to 60°C
Protection grade: IP67
PCB covered by resin
Led injection module with PC cover
Working mode static voltage current: 18mA
Light performance
Luminous flux: 18 to 20lm (≥20lm)
Beam angle:
- 3-chip 5050 SMD LED angle: 150 to 180°

Features:

Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost
So larger chip in LED
No spot
No shadow
Five colors are available: red, yellow, blue, green and white
Safe and stable
Maintenance-free
Low power consumption, up to 60% more energy efficient than neon and good heat dissipation
Long lifespan: 50,000 to 80,000 hours
Totally water-resistant with IP65, works well under harsh conditions
Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting
Eco-friendly

Applications:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decoration

Compliant with CE, UL standard and RoHS Directive

Power: 0.75W

Input voltage: 12V DC

Color: green

LED type: 5050 SMD

LED quantity: 3 pieces

Dimension: 73 x 12.5 x 7mm

Weight: 10kg, ±5%/1,000 pieces

Cover: plastic and PCB

Working temperatures: -40 to 60°C

Protection grade: IP67

PCB covered by resin

Led injection module with PC cover

Working mode static voltage current: 18mA

Light performance

Luminous flux: 18 to 20lm (≥20lm)

Beam angle:

3-chip 5050 SMD LED angle: 150 to 180°

3-chip 5050 SMD LED angle: 150 to 180°

Super high brightness: 5050 SMD LEDs water-resistant module adopts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost

So larger chip in LED

No spot

No shadow

Five colors are available: red, yellow, blue, green and white

Safe and stable

Maintenance-free

Low power consumption, up to 60% more energy efficient than neon and good heat dissipation

Long lifespan: 50,000 to 80,000 hours

Totally water-resistant with IP65, works well under harsh conditions

Easy to install with mounting holes and 3M adhesive tape on the back for convenient mounting

Eco-friendly

Commercial advertisement signs backlight
