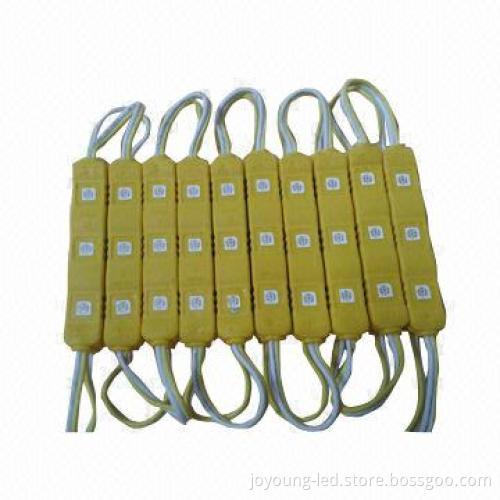

IP65/12V/18 to 20lm 3-piece 5050 Water-resistant LED Injection Modules

IP65/12V/18 to 20lm 3-piece 5050 Water-resistant LED Injection Modules

Get Latest Price

Payment Type:: PayPal, Western Union or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, Western Union or T/T

Product Description

Features:

Super high brightness: adapts 3-chip SMD LEDs as its luminous body with high intensity and can emit higher brightness at lower cost and so bigger chip in LED
No spot
No shadow

Colors: red, yellow, blue, green and white

Safe and stable, maintenance-free

Low power consumption, up to 60% more energy efficient than neon and nice heat dissipation

Long lifespan: 50,000 to 80,000 hours

Totally water-resistant with IP65, work well under harsh conditions

Easy installation with mounting holes and 3M adhesive tape on back for convenient mounting

Eco-friendly

Certifications: CE and UL

RoHS Directive-compliant

Specifications:

LED type: 5050 SMD
LED quantity: 3 pieces
Dimensions: 73 x 12.5 x 7mm
Weight: 10kg, ±5%/1000 pieces
Lifespan: >50,000 hours
Cover: plastic PCB
Working temperature: -40 to +60°C
Protection grade: IP65
PCB can be covered by resin
Input voltage: 12V DC
Power: 0.75W
Work mode: static voltage
Current: 18mA

Light performance:

Luminous flux: 18 to 20lm
Beam angle:
3-chip 5050 SMD LED: 150 to 180°

Applications:

Commercial advertisement signs backlight
Channel letters backlight
Advertisement light box backlight and decoration
