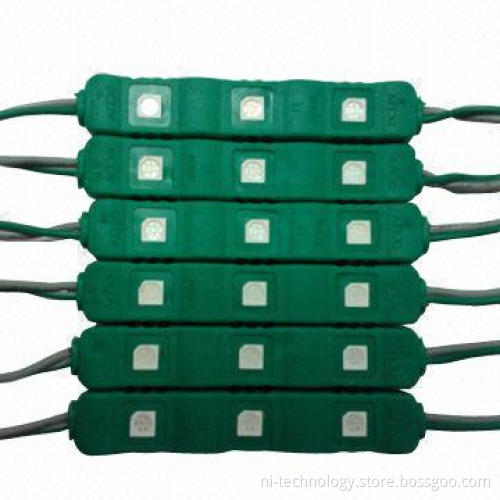

Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
  • Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
  • Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
  • Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
  • Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module
Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module

Channel letter high brightness SMD5050 3-piece LEDs water-resistant injection LED module

Get Latest Price
Payment Type:
PayPal, Western Union or T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal, Western Union or T/T
Product Description
Product Description
  • Features:
    • High brightness: adapts 3-chip SMD LED as luminous body with high intensity and can emit higher brightness at lower cost
    • Larger chip in LED
    • No spot
    • No shadow
    • Colors: red, yellow, blue, green and white
    • Safe and stable
    • Maintenance-free
    • Low-power consumption, up to 60% more energy efficient than neon with nice heat dissipation
    • Long lifespan: 50,000 to 80,000 hours
    • Totally waterproof with IP65
    • Works well under harsh conditions
    • Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting
    • Eco--friendly
  • Specification:
    • Color: green
    • LED type: injection 5050
    • LED quantity: 3 pieces
    • Dimension: 73 x 12.5 x 7mm
    • Weight: 10kg, ±5%/1,000 pieces
    • Lifespan: 50,000 hours
    • Working temperature: -40 to 60°C
    • Input voltage: 12V DC
    • Power: 0.75W
    • Working mode: static
    • Current: 18mA
    • Light performance
    • Luminous flux: 18 to 20lm (≥20lm)
    • Beam angle:
      3-chip 5050 SMD LED: 160 to 180°
    • Maximum length in serial connection: ≤20 pieces per chain
  • Applications:
    • Commercial advertisement's backlight signs
    • Channel letters backlight
    • Advertisement's light box backlight and decorations
    • Ideal replacement for incandescent and fluorescent lights
  • Certification: CE and UL
  • Compliant with RoHS Directive
  • High brightness: adapts 3-chip SMD LED as luminous body with high intensity and can emit higher brightness at lower cost
  • Larger chip in LED
  • No spot
  • No shadow
  • Colors: red, yellow, blue, green and white
  • Safe and stable
  • Maintenance-free
  • Low-power consumption, up to 60% more energy efficient than neon with nice heat dissipation
  • Long lifespan: 50,000 to 80,000 hours
  • Totally waterproof with IP65
  • Works well under harsh conditions
  • Easy to install with mounting holes and 3m adhesive tape on back for convenient mounting
  • Eco--friendly
  • Color: green
  • LED type: injection 5050
  • LED quantity: 3 pieces
  • Dimension: 73 x 12.5 x 7mm
  • Weight: 10kg, ±5%/1,000 pieces
  • Lifespan: 50,000 hours
  • Working temperature: -40 to 60°C
  • Input voltage: 12V DC
  • Power: 0.75W
  • Working mode: static
  • Current: 18mA
  • Light performance
  • Luminous flux: 18 to 20lm (≥20lm)
  • Beam angle:
    3-chip 5050 SMD LED: 160 to 180°
  • Maximum length in serial connection: ≤20 pieces per chain
  • Commercial advertisement's backlight signs
  • Channel letters backlight
  • Advertisement's light box backlight and decorations
  • Ideal replacement for incandescent and fluorescent lights
