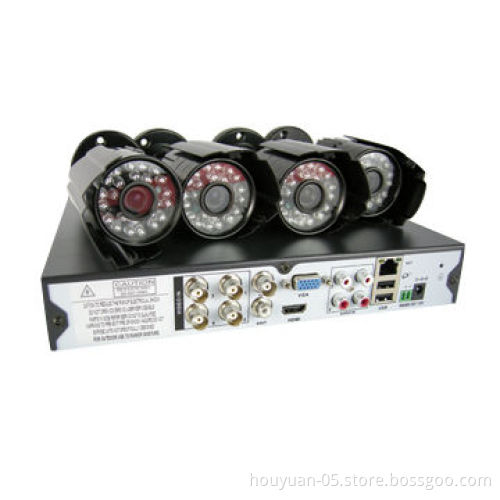

DVR and Network Camera with High Performance Embedded Microprocessor

DVR and Network Camera with High Performance Embedded Microprocessor

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Type:

16ch
8ch
4ch
System:

Main processor: high performance embedded microprocessor

Operation system: embedded Linux operation system

System resource: synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation

Interface:

Operation interface: 16-bit true color graphical menu interface, mouse operation supportive
Display:
- 1/4 image display
- 1/4/8/9 image display
- 1/4/8/9/16 image display
Video:
- Video standard: PAL 625 line, 50 f/s, NTSC 525 line, 60 f/s
- Surveillance image quality: PAL, D1 (704x576), NTSC, D1 (704x480)
- Playback image quality: PAL, D1 (704×576), NTSC, D1 (704*480)
- Video compression: H.264 MP
- Video control: 6 options
Recording speed:
- 100/120fps (D1)
- 200/240fps(CIF)
- 50/60fps D1
- 400/480fps CIF
Motion detect: 396 (22×18) detection areas, multiple sensitivity
Audio:
- Audio compression: G711A
- Bi-directional talk: supported
- Record and playback
- Recording mode: manual >alarm>motion detect>timing
- Playback: any channels playback, multiple channels playback
Search mode: time searching, calendar searching, affair searching, channel searching and information searching
Storage and backup:
- Space occupation
- Audio: 28.8MB/H, Video: 25-450MB/H
- Recording storage: hard disk, network
- Backup mode: network, USB flash, USB movable HDD, USB DVD-RW
Port:
- Video input:
  - 4 BNC
  - 8 BNC
  - 16 BNC
- Video output: 1 BNC, 1 VGA
- Audio input:
  - 4 RCA
  - 1 RCA
- Audio output: 1 RCA
- Alarm input:
  - 4CH
  - 1CH
- Alarm output: 1 channel
- Network port: RJ45 10M/100M
- PTZ control port: 1 RS485
- USB port: 2*USB2.0 ports
- Hard disk port: 1 SATA port

Other:

Power supply: 12V/4A external power supply
Power consumption: <15W (without hard disk)

16ch

8ch

4ch

System:

Operation interface: 16-bit true color graphical menu interface, mouse operation supportive

Display:

1/4 image display
1/4/8/9 image display
1/4/8/9/16 image display

Video:

Video standard: PAL 625 line, 50 f/s, NTSC 525 line, 60 f/s
Surveillance image quality: PAL, D1 (704x576), NTSC, D1 (704x480)
Playback image quality: PAL, D1 (704×576), NTSC, D1 (704*480)
Video compression: H.264 MP
Video control: 6 options

Recording speed:

100/120fps (D1)
200/240fps(CIF)
50/60fps D1
400/480fps CIF

Motion detect: 396 (22×18) detection areas, multiple sensitivity

Audio:

Audio compression: G711A
Bi-directional talk: supported
Record and playback
Recording mode: manual >alarm>motion detect>timing
Playback: any channels playback, multiple channels playback

Search mode: time searching, calendar searching, affair searching, channel searching and information searching

Storage and backup:

Space occupation
Audio: 28.8MB/H, Video: 25-450MB/H
Recording storage: hard disk, network
Backup mode: network, USB flash, USB movable HDD, USB DVD-RW

Port:

Video input:
- 4 BNC
- 8 BNC
- 16 BNC
Video output: 1 BNC, 1 VGA
Audio input:
- 4 RCA
- 1 RCA
Audio output: 1 RCA
Alarm input:
- 4CH
- 1CH
Alarm output: 1 channel
Network port: RJ45 10M/100M
PTZ control port: 1 RS485
USB port: 2*USB2.0 ports
Hard disk port: 1 SATA port

1/4 image display

1/4/8/9 image display

1/4/8/9/16 image display

Video standard: PAL 625 line, 50 f/s, NTSC 525 line, 60 f/s

Surveillance image quality: PAL, D1 (704x576), NTSC, D1 (704x480)

Playback image quality: PAL, D1 (704×576), NTSC, D1 (704*480)

Video compression: H.264 MP

Video control: 6 options

100/120fps (D1)

200/240fps(CIF)

50/60fps D1

400/480fps CIF

Audio compression: G711A

Bi-directional talk: supported

Record and playback

Recording mode: manual >alarm>motion detect>timing

Playback: any channels playback, multiple channels playback

Space occupation

Audio: 28.8MB/H, Video: 25-450MB/H

Recording storage: hard disk, network

Backup mode: network, USB flash, USB movable HDD, USB DVD-RW

Video input:

4 BNC
8 BNC
16 BNC

Video output: 1 BNC, 1 VGA

Audio input:

4 RCA
1 RCA

Audio output: 1 RCA

Alarm input:

Alarm output: 1 channel

Network port: RJ45 10M/100M

PTZ control port: 1 RS485

USB port: 2*USB2.0 ports

Hard disk port: 1 SATA port

4 BNC

8 BNC

16 BNC

4 RCA

1 RCA

4CH

1CH

Power supply: 12V/4A external power supply

Power consumption: <15W (without hard disk)
