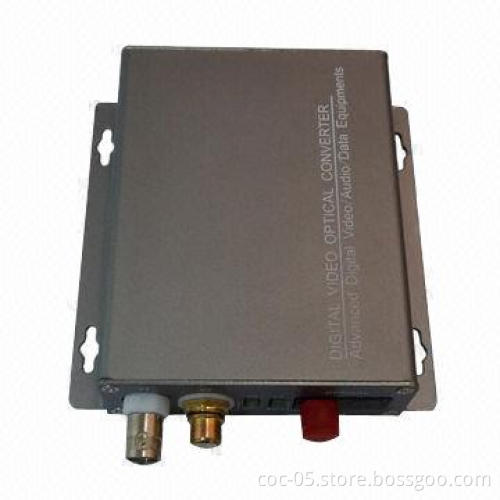

CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch
  • CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch
  • CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch
CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch
CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch

CCTV Fiber Digital Video Converter, 1 to 128 Channels of Video, Audio, Data and Switch

Get Latest Price
Payment Type:
T/T, L/C and Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C and Western Union
Product Description
Product Description
  • Features:
    • Thunder protection for the safety installation
    • RS485 for PTZ control
    • 1 to 128 channel video and one reversed/bidirectional RS485 over fiber
  • Applications:
    • Monitoring center interconnect
    • Intelligent transportation system (ITS)
    • Highway video monitoring system
    • Toll station video monitoring system
    • Exchange of television programs transmitted
    • High-fidelity video conference system
  • Specifications:
    • Video:
      • Connector: BNC
      • Video channels: 1 to 128
      • Signal formats: PAL, NTSC and SECAM
      • Standard input and output level: 1Vp-p
      • Standard input and output impedance: 75Ω
      • Bandwidth per channel: 6.5MHz
      • Sampling frequency: 13.5MHz
      • Digitization: 8-bit
      • Differential gain: ≤1% (typical)
      • Differential phase: ≤1° (typical)
      • SNR: 67dB (typical)
      • Color brightness differential delay: 10ns (typical)
      • Color brightness gain difference: ±10% (typical)
    • RS485 (optional):
      • Reversed/bidirectional RS485
      • Connector: terminal block for easy installation
      • Receiver input sensitivity: ±200mV (maximum)
      • Receiver output current, IO: ±10mA
      • Maximum rate of transmitting and receiving: 200kbps
    • Fiber:
      Fiber port: default with FC, single fiber, single mode, 20km
    • Power:
      • Device: 5V DC (4.75 to 5.25V)
      • Power adapter working voltage: 220 ±20V AC
    • Temperature:
      • Operating: -20 to 70°C
      • Storage: -40 to 80°C
    • Relative humidity: 0 to 95% (non-condensing)
    • No corrosive and solvent gas, dust and strong magnetic interference
  • Thunder protection for the safety installation
  • RS485 for PTZ control
  • 1 to 128 channel video and one reversed/bidirectional RS485 over fiber
  • Monitoring center interconnect
  • Intelligent transportation system (ITS)
  • Highway video monitoring system
  • Toll station video monitoring system
  • Exchange of television programs transmitted
  • High-fidelity video conference system
  • Video:
    • Connector: BNC
    • Video channels: 1 to 128
    • Signal formats: PAL, NTSC and SECAM
    • Standard input and output level: 1Vp-p
    • Standard input and output impedance: 75Ω
    • Bandwidth per channel: 6.5MHz
    • Sampling frequency: 13.5MHz
    • Digitization: 8-bit
    • Differential gain: ≤1% (typical)
    • Differential phase: ≤1° (typical)
    • SNR: 67dB (typical)
    • Color brightness differential delay: 10ns (typical)
    • Color brightness gain difference: ±10% (typical)
  • RS485 (optional):
    • Reversed/bidirectional RS485
    • Connector: terminal block for easy installation
    • Receiver input sensitivity: ±200mV (maximum)
    • Receiver output current, IO: ±10mA
    • Maximum rate of transmitting and receiving: 200kbps
  • Fiber:
    Fiber port: default with FC, single fiber, single mode, 20km
  • Power:
    • Device: 5V DC (4.75 to 5.25V)
    • Power adapter working voltage: 220 ±20V AC
  • Temperature:
    • Operating: -20 to 70°C
    • Storage: -40 to 80°C
  • Relative humidity: 0 to 95% (non-condensing)
  • No corrosive and solvent gas, dust and strong magnetic interference
  • Connector: BNC
  • Video channels: 1 to 128
  • Signal formats: PAL, NTSC and SECAM
  • Standard input and output level: 1Vp-p
  • Standard input and output impedance: 75Ω
  • Bandwidth per channel: 6.5MHz
  • Sampling frequency: 13.5MHz
  • Digitization: 8-bit
  • Differential gain: ≤1% (typical)
  • Differential phase: ≤1° (typical)
  • SNR: 67dB (typical)
  • Color brightness differential delay: 10ns (typical)
  • Color brightness gain difference: ±10% (typical)
  • Reversed/bidirectional RS485
  • Connector: terminal block for easy installation
  • Receiver input sensitivity: ±200mV (maximum)
  • Receiver output current, IO: ±10mA
  • Maximum rate of transmitting and receiving: 200kbps
  • Device: 5V DC (4.75 to 5.25V)
  • Power adapter working voltage: 220 ±20V AC
  • Operating: -20 to 70°C
  • Storage: -40 to 80°C
