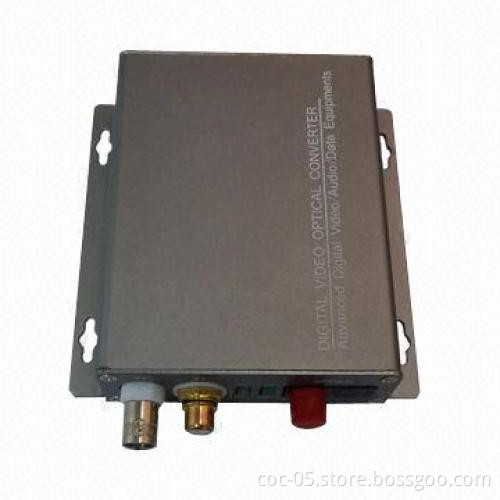

Fiber Video Converter, Sent 1 to 128 Channels of High-quality Video/Audio/Data/Switch

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Thunder protection for the safety installation

RS485 for PTZ control available

1 to 128 channel video and one reversed/bidirectional RS485 over fiber

Applications:

Monitoring center interconnect
Intelligent transportation system (ITS)
Highway video monitoring system
Toll station video monitoring system
Exchange of television programs transmitted
High-fidelity video conference system

Video:

Connector: BNC
Video channels: 1 to 128
Signal formats: PAL/NTSC/SECAM
Standard input and output level: 1Vp-p
Standard input and output impedance: 75Ω
Bandwidth per channel: 6.5MHz
Sampling frequency: 13.5MHz
Digitization: 8-bit
Differential gain: Differential phase: S/N ratio: 67dB (typical)
Color brightness differential delay: 10ns (typical)
Color brightness gain difference: ±10% (typical)

RS485 (option):

Reversed/bidirectional RS485 option
Connector: terminal block for easy installation
Receiver input sensitivity: ±200mV maximum
Receiver output current, IO: ±10mA
Maximum rate of transmitting and receiving: 200kbps

Fiber port: default with FC, single fiber, single mode, 20km

Power:

Device: 5V DC (4.75 to 5.25V)
Power adapter working voltage: 220 ±20V AC

Temperature:

Operating: -20 to 70°C
Storage: -40 to 80°C

Relative humidity: 0 to 95% (non-condensing)

No corrosive and solvent gas, dust and strong magnetic interference

Monitoring center interconnect

Intelligent transportation system (ITS)

Highway video monitoring system

Toll station video monitoring system

Exchange of television programs transmitted

High-fidelity video conference system

Connector: BNC

Video channels: 1 to 128

Signal formats: PAL/NTSC/SECAM

Standard input and output level: 1Vp-p

Standard input and output impedance: 75Ω

Bandwidth per channel: 6.5MHz

Sampling frequency: 13.5MHz

Digitization: 8-bit

Differential gain: Differential phase: S/N ratio: 67dB (typical)

Color brightness differential delay: 10ns (typical)

Color brightness gain difference: ±10% (typical)

Reversed/bidirectional RS485 option

Connector: terminal block for easy installation

Receiver input sensitivity: ±200mV maximum

Receiver output current, IO: ±10mA

Maximum rate of transmitting and receiving: 200kbps

Device: 5V DC (4.75 to 5.25V)

Power adapter working voltage: 220 ±20V AC

Operating: -20 to 70°C

Storage: -40 to 80°C
