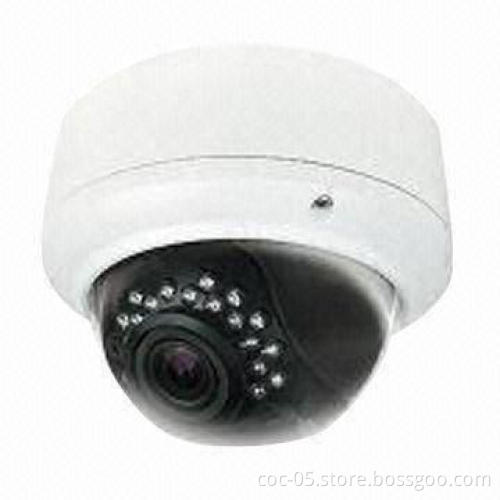

IR Dome Wired IP Camera with 1/3-inch Sony Super HADII CCD and 520TVL High Resolution

Get Latest Price

Payment Type:: T/T, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Features:

High resolution: 520TVL
Lens: 6.0mm fixed lens (standard)
IR LED quantity: 22-piece, 5IR LED, 20M IR viewing distance
Good in color reproduction
AGC (automatic), BLC, flicker-less
3-axis movement for free lens rotation
Digital noise reduction
High sensitivity, no chromatic aberration
Easy installation and operating

Specification:

Image sensor: 1/3-inch Sony Super HADII CCD
Signal system: PAL and NTSC
Horizontal resolutions: 520 and 500TVL
Total pixel number:
- PAL (H x V): 752 x 582 pixels
- NTSC (H x V): 768 x 494 pixels
Minimum illumination: 0Lux and IR on
Day and night system
Automatic color to B/W switch
S/N ratio: ≥48dB
Video output level: 1.0Vp-p, 750 Ohms and BNC
Gamma correction: 0.45
Exposure mode: EE (electronic exposure)
Electronic shutter:
- PAL: 1/50 to 1/100,000 seconds
- NTSC: 1/60 to 1/100,000 seconds
Synchronization system: internal synchronization
Operating AGC: automatic
White balance: automatic
Backlight compensation: automatic
Lens type: 6mm fixed lens (standard)
Lens mount: M12
Electrical:
- Power voltage: 12V DC ± 5%
- Power consumption: ≤2W
Physical:
- External case: engineering plastic
- Working temperature: -10 to +50°C
- Working humidity: 10 to 85% RH
- Dimension (L x H): 100.0 x 130.0/mm
Net weight: 300g

High resolution: 520TVL

Lens: 6.0mm fixed lens (standard)

IR LED quantity: 22-piece, 5IR LED, 20M IR viewing distance

Good in color reproduction

AGC (automatic), BLC, flicker-less

3-axis movement for free lens rotation

Digital noise reduction

High sensitivity, no chromatic aberration

Easy installation and operating

Image sensor: 1/3-inch Sony Super HADII CCD

Signal system: PAL and NTSC

Horizontal resolutions: 520 and 500TVL

Total pixel number:

PAL (H x V): 752 x 582 pixels
NTSC (H x V): 768 x 494 pixels

Minimum illumination: 0Lux and IR on

Day and night system

Automatic color to B/W switch

S/N ratio: ≥48dB

Video output level: 1.0Vp-p, 750 Ohms and BNC

Gamma correction: 0.45

Exposure mode: EE (electronic exposure)

Electronic shutter:

PAL: 1/50 to 1/100,000 seconds
NTSC: 1/60 to 1/100,000 seconds

Synchronization system: internal synchronization

Operating AGC: automatic

White balance: automatic

Backlight compensation: automatic

Lens type: 6mm fixed lens (standard)

Lens mount: M12

Electrical:

Power voltage: 12V DC ± 5%
Power consumption: ≤2W

Physical:

External case: engineering plastic
Working temperature: -10 to +50°C
Working humidity: 10 to 85% RH
Dimension (L x H): 100.0 x 130.0/mm

Net weight: 300g

PAL (H x V): 752 x 582 pixels

NTSC (H x V): 768 x 494 pixels

PAL: 1/50 to 1/100,000 seconds

NTSC: 1/60 to 1/100,000 seconds

Power voltage: 12V DC ± 5%

Power consumption: ≤2W

External case: engineering plastic

Working temperature: -10 to +50°C

Working humidity: 10 to 85% RH

Dimension (L x H): 100.0 x 130.0/mm
