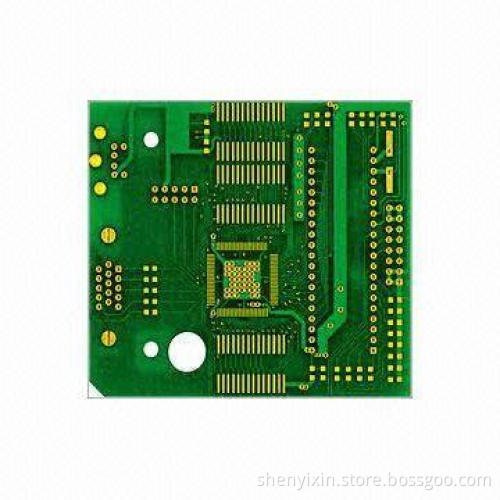

CFL PCB with Double-sided Lamination and ENIG Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Double-sided PCB

With lead-free HASL

Base material: FR-4 based with TG150

Board thickness: 1.6mm

Copper thickness: 1/1 oz

Minimum line width: 18mil

Minimum line spacing: 10mil

Soldermask color: green

With ISO9001, UL, RoHS and SGS marks

Number of layer: 1 to 16

Materials: FR-4, Taconic, Rogers, metal-backed laminate

Finished board thicknesses: 0.2 to 3.2mm (8 to 126mil)

Minimum core thickness: 0.075mm (3mil)

Copper thickness:

Minimum width and line spacing: 0.075/0.1mm (3/4mil)

Minimum hole diameter for CNC drilling: 0.2mm

Maximum fabrication area: 610 x 508mm

Conductor width: ±0.05mm (2mil), ±20% of originalartwork

Hole diameter:

Outline tolerance: ±0.125mm (5mil) CNC routing,±0.15mm (6mil) by punching

Warp and twist: 0.70%

Minimum: 1/2oz

Maximum: 6oz

PTH L: ±0.075mm (3mil)

Non-PTH L: ±0.05mm (2mil)
