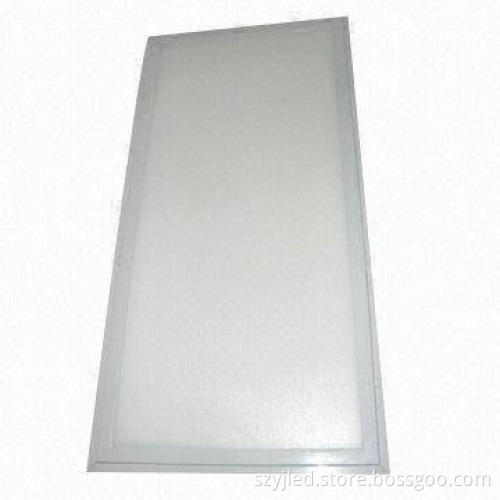

18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm
  • 18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm
  • 18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm
18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm
18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm

18W Cool White LED Panel Light with 1,400lm Luminous Flux, Measures 557 x 257 x 18mm

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Patented TV backlight technology and good uniformity: >95%
    • High efficiency (70 to 80lm/W) and low lumens decline
    • Isolated power, constant-current driver and no flicker
    • Super-thin and lightweight, 6.5/10mm available
    • Various installation method: recessed and suspended or surface mounted
    • Dimmable brightness and color temperature
  • Specifications:
    • Materials: aluminum and GLP
    • Power: 18W
    • Color rendering index: >75Ra
    • Beam angle: 160°
    • LED type: 3014 SMD
    • Luminous efficiency: 70 to 80lm/W
    • Luminous flux (cool white): 1,400lm
    • Uniformity >95% (patented technology)
    • Color temperatures:
      • Warm white: 2,700 to 3,500K
      • Nature white: 4,000 to 5,000K
      • Pure white: 5,500 to 6,500K
    • Input voltage: 85 to 265V at 50 or 60Hz
    • Aluminum frame color: silver (sand blasting)/white (baking finish)
    • Lifespan: >25,000 hours
    • Operating temperature: -20 to 40°
    • Operating humidity: 20 to 90% RH
    • Storage temperature: -40 to 60°
    • Storage humidity: 10 to 95% RH
    • Warranty: 2 years
    • Dimensions: 557 x 257 x 18mm
  • Certificate: CE
  • Compliant with RoHS Directive
  • Applications:
    • Residential/institutional buildings
    • Schools/library/hospitals/hotels/restaurants
    • Conference centers/meeting rooms/show rooms/offices
    • Commercial complex/supermarkets/shopping malls
    • Warehouses/parking garages/stations
  • Packaging:
    • Inner box: 68 x 65 x 4cm
    • Net weight: 3.0kg
    • Gross weight: 3.6kg
    • Outside box: 71.5 x 66.5 x 28cm
    • Quantity: 6 pieces/carton
    • Net weight: 21.6kg
    • Gross weight: 30.0kg
  • Patented TV backlight technology and good uniformity: >95%
  • High efficiency (70 to 80lm/W) and low lumens decline
  • Isolated power, constant-current driver and no flicker
  • Super-thin and lightweight, 6.5/10mm available
  • Various installation method: recessed and suspended or surface mounted
  • Dimmable brightness and color temperature
  • Materials: aluminum and GLP
  • Power: 18W
  • Color rendering index: >75Ra
  • Beam angle: 160°
  • LED type: 3014 SMD
  • Luminous efficiency: 70 to 80lm/W
  • Luminous flux (cool white): 1,400lm
  • Uniformity >95% (patented technology)
  • Color temperatures:
    • Warm white: 2,700 to 3,500K
    • Nature white: 4,000 to 5,000K
    • Pure white: 5,500 to 6,500K
  • Input voltage: 85 to 265V at 50 or 60Hz
  • Aluminum frame color: silver (sand blasting)/white (baking finish)
  • Lifespan: >25,000 hours
  • Operating temperature: -20 to 40°
  • Operating humidity: 20 to 90% RH
  • Storage temperature: -40 to 60°
  • Storage humidity: 10 to 95% RH
  • Warranty: 2 years
  • Dimensions: 557 x 257 x 18mm
  • Warm white: 2,700 to 3,500K
  • Nature white: 4,000 to 5,000K
  • Pure white: 5,500 to 6,500K
  • Residential/institutional buildings
  • Schools/library/hospitals/hotels/restaurants
  • Conference centers/meeting rooms/show rooms/offices
  • Commercial complex/supermarkets/shopping malls
  • Warehouses/parking garages/stations
  • Inner box: 68 x 65 x 4cm
  • Net weight: 3.0kg
  • Gross weight: 3.6kg
  • Outside box: 71.5 x 66.5 x 28cm
  • Quantity: 6 pieces/carton
  • Net weight: 21.6kg
  • Gross weight: 30.0kg
