520TVL Mini Camera with 8 LEDs 90 Degrees Night Vision Micro Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or PayPal

Product Description

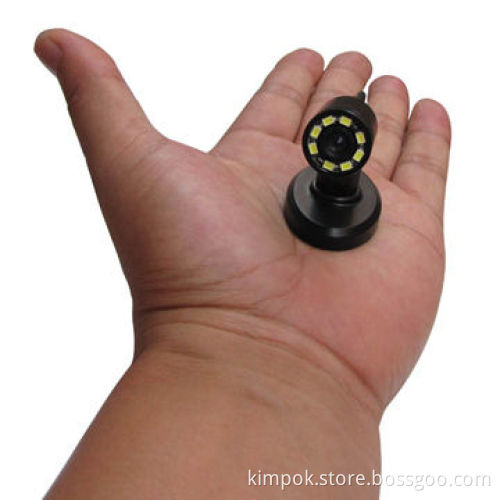

Day and night 520TVL mini CCTV camera with 8 LEDs, 90 degrees view angle and F1.2 high luminous flux

This camera comes with high sensitive CMOS sensor, high luminous flux (F1.2) and wide view angle (90°) mini lens. 8 controllable high bright

LED lamps enable the effective recording distance up to 8 meters and surveillance area up to 100 square meters in the complete darkness

This series of products are of small volume and light weight, high stability and ultra long working life

They are very suitable for day and night hidden surveillance, project monitoring and equipment maintenance, etc

Main features:

Specifications:

Pick up element single chip 1/3" CMOS
System: NTSC
Number of pixels: NTSC (H x V): 656 x 492p
Sensor dimension (H x V): 4.75 x 3.55mm
Horizontal resolution: approximately 520TVL
Sensitivity: 0.00Lux/5m
Lens and viewing angle: 0.5mm F1.2/90°
LED control: light (default), on-off, self-motion
8-LED: 17,600mcd
Video out: 1.0V p-p/75 Ohms
LED control out: AV (default), on-off, photosensitive resistor
Weight:
- Camera: 12g
- Stand: 15g
Working current:
- 5V DC: 70mA (lamp off)/185mA (lamp on)
- 12V DC: 35mA (lamp off)/85mA (lamp on)
Power requirement:
- 5V DC: 3.6-5V
- 12V DC: 3.6-24V
Operating temperature: -10-+50°C, less than 90% RH
Connection:
- Pin 1: red 5V DC
- Pin 2: black GND
- Pin 3: yellow video out
- Pin 4: white LED control out
