Product Description

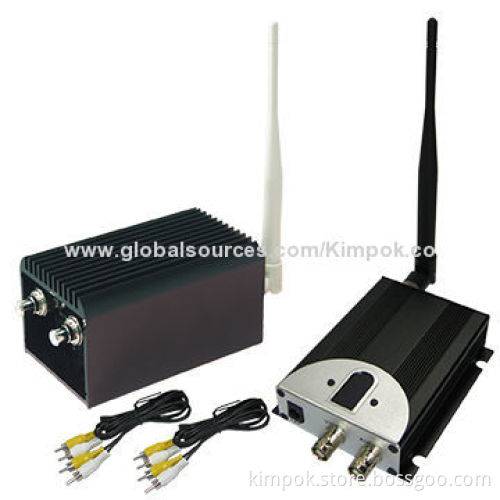

Professional FPV, UAV transmitter, receiver

1.2GHz 2W 4CHS wireless AV transmitter & receiver kit, digital play, 4CH transmitter, credibility, synchronic, transmitting AV signal, use for long-distance of wireless transmitting equipment

Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects

Specifications:

Working voltage: 12V DC
Output frequency: 0.9/1.2/1.3G
Channel: 4CHS, video and audio synchronization
Output power: 3,000mW
Weight: 338g
Dimensions: 111x67x60mm
Transmit distance: 2,000 to 5,000m

Packing includes:

Transmitter
12-ch receiver
Antenna
Video cable and transmitter connecting cable
Power adapters for transmitter and receiver

Installing:

Suit have two wires: one is audio & video
Connect wire, connecting receiver to the monitor or TV, another wire connect transmitter to camera
Change transmitter's small switch place can change transmit frequency like the following picture
Please using outdoor antenna to transmit, or else it can arose the antenna more hot to affect transmit efficiency
Don't touch the bare parts of antenna because the transmit frequency is high
Transmitter use 12V/3A power, and camera must use another power 12V/800mA
Package including: 12 channel receiver, transmitter, two pieces of small antennas, AV cable and TX cable

Applications:

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need, this equipment will cover a long distance in the open area around 3,500m, but when there are obstacle between the transmitter and receiver, it will be decided case by case, this unit is the professional one in 1.2G series that can be used to cover the long distance where need strong signal and the industrial project

Working voltage: 12V DC

Output frequency: 0.9/1.2/1.3G

Channel: 4CHS, video and audio synchronization

Output power: 3,000mW

Weight: 338g

Dimensions: 111x67x60mm

Transmit distance: 2,000 to 5,000m

Transmitter

12-ch receiver

Antenna

Video cable and transmitter connecting cable

Power adapters for transmitter and receiver

Suit have two wires: one is audio & video

Connect wire, connecting receiver to the monitor or TV, another wire connect transmitter to camera

Change transmitter's small switch place can change transmit frequency like the following picture

Please using outdoor antenna to transmit, or else it can arose the antenna more hot to affect transmit efficiency

Don't touch the bare parts of antenna because the transmit frequency is high

Transmitter use 12V/3A power, and camera must use another power 12V/800mA

Package including: 12 channel receiver, transmitter, two pieces of small antennas, AV cable and TX cable

If you are seeking an equipment that can transmit the audio and video to a long distance without cable, for example the villa, small lake, bridge or some other open areas, this transmitter system is the right one you need, this equipment will cover a long distance in the open area around 3,500m, but when there are obstacle between the transmitter and receiver, it will be decided case by case, this unit is the professional one in 1.2G series that can be used to cover the long distance where need strong signal and the industrial project
