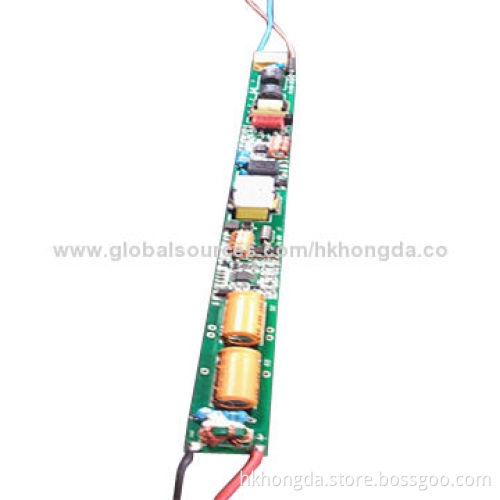

23W 70V T5/T8/T10 LED Tube Isolated Driver
  • 23W 70V T5/T8/T10 LED Tube Isolated Driver
23W 70V T5/T8/T10 LED Tube Isolated Driver

23W 70V T5/T8/T10 LED Tube Isolated Driver

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specification:
    • 23W, 70V, T5/T8/T10
    • AC/DC
    • Short-circuit, over-load, -voltage, -temperature
    • 100% full-load
  • Features:
    • Protections: short-circuit, over-load, -voltage, -temperature
    • 100% built-in (full-load) test
    • Input voltage range: 100-240V AC
    • Input power: 10-23W
    • Input current: 80mA
    • Output voltage: 30-80V DC
    • Output current: 100-110mA
    • Power factor: 0.98
    • Efficiency: 90%
    • Long lifespan: >30,000hrs
    • Ambient temperature range: -20-50°C
    • Normal 2 years warranty, 3y ears warranty customer's should add 1.00RMB
    • Safety, high efficiency, low consumption, energy conservation, environment-friendly
  • Product series detailed information:
    • Input voltage: 100-240V AC
    • Output current: 0.11A, ±3%
    • Output voltage: 30-80V DC
    • Power factor: 0.98
    • Power factor: 90%
    • Size (LxWxH): 180x18x10mm
    • Power: 10-23W
  • With CE certificate
  • 23W, 70V, T5/T8/T10
  • AC/DC
  • Short-circuit, over-load, -voltage, -temperature
  • 100% full-load
  • Protections: short-circuit, over-load, -voltage, -temperature
  • 100% built-in (full-load) test
  • Input voltage range: 100-240V AC
  • Input power: 10-23W
  • Input current: 80mA
  • Output voltage: 30-80V DC
  • Output current: 100-110mA
  • Power factor: 0.98
  • Efficiency: 90%
  • Long lifespan: >30,000hrs
  • Ambient temperature range: -20-50°C
  • Normal 2 years warranty, 3y ears warranty customer's should add 1.00RMB
  • Safety, high efficiency, low consumption, energy conservation, environment-friendly
  • Input voltage: 100-240V AC
  • Output current: 0.11A, ±3%
  • Output voltage: 30-80V DC
  • Power factor: 0.98
  • Power factor: 90%
  • Size (LxWxH): 180x18x10mm
  • Power: 10-23W
