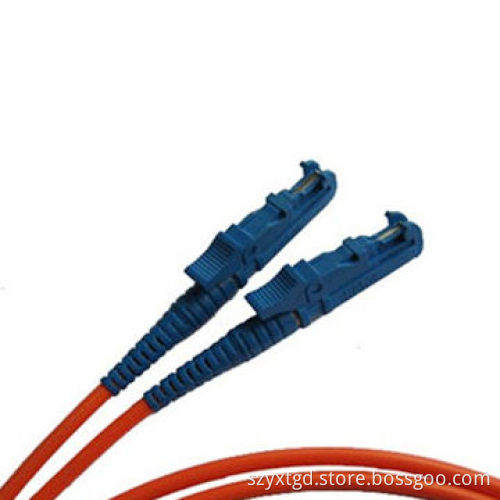

Patch Cord, SM/MM Simplex/Duplex Fiber Pigtails

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

The ferrule is protected by the integrated spring-loaded shutter
The connector housing protects the ferrule all round against dust, dirt and scratches
No different expansion coefficients due to monopoly ceramic ferrule
Latched push-pull locking type
PC polishing available
Interferential parameters available
Hybrid patch-cords are available upon request
Pigtail available,/ul>
Applications:
- Connection of optical transmission equipment E2000-SM-APC
- Telecommunication
- CATV
- LAN (including FITL, FTTH and FTTD)
- Computer network
- ODF of optical transmission systems
- High-speed data transmission networks
Specifications:
- Multi-/single-mode
- Diameter: 0.9, 2.0, 3.0mm
- Fiber cable: simplex or duplex available
- SM:
  Operating wavelength: 1,310 and 1,550nm
- MM:
  Operating wavelength: 850nm
- SM:
  - Insertion loss:
    - d0.3dB (PC) maximum value
    - d0.3dB (UPC) maximum value
    - d0.3dB (APC) maximum value
- MM:
  - Insertion loss:
    - d0.3dB (PC) maximum value
    - d0.3dB (UPC) maximum value
- SM:
  Return loss: 45 (PC)/50 (UPC)/60dB (APC)
- MM:
  Return loss: 35 (PC)/40dB (UPC)
- Exchange ability: d0.2dB
- Repeatability: d0.2dB
- Operating temperature: -40 to 75 degrees C
- Storage temperature: -40 to 85 degrees C, JAD

The ferrule is protected by the integrated spring-loaded shutter

The connector housing protects the ferrule all round against dust, dirt and scratches

No different expansion coefficients due to monopoly ceramic ferrule

Latched push-pull locking type

PC polishing available

Interferential parameters available

Hybrid patch-cords are available upon request

Pigtail available,/ul>

Applications:

Specifications:

Multi-/single-mode
Diameter: 0.9, 2.0, 3.0mm
Fiber cable: simplex or duplex available
SM:
Operating wavelength: 1,310 and 1,550nm
MM:
Operating wavelength: 850nm
SM:
- Insertion loss:
  - d0.3dB (PC) maximum value
  - d0.3dB (UPC) maximum value
  - d0.3dB (APC) maximum value
MM:
- Insertion loss:
  - d0.3dB (PC) maximum value
  - d0.3dB (UPC) maximum value
SM:
Return loss: 45 (PC)/50 (UPC)/60dB (APC)
MM:
Return loss: 35 (PC)/40dB (UPC)
Exchange ability: d0.2dB
Repeatability: d0.2dB
Operating temperature: -40 to 75 degrees C
Storage temperature: -40 to 85 degrees C, JAD
