Product Description
Product Description
  • Detailed product description:

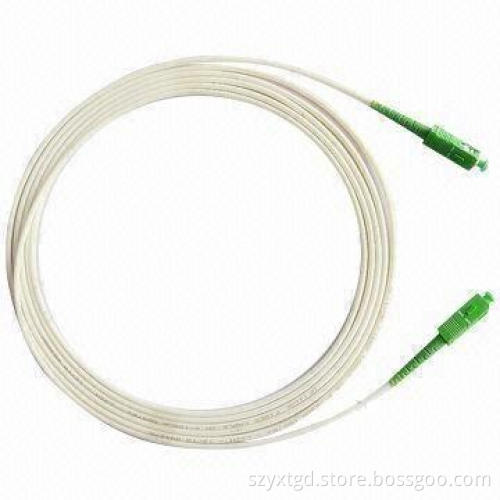

    • SC/APC-SC/APC-SM-SX-3.0mm to 2m, white color
    • SC connector stands for subscriber connector, a general purpose push/pull style connector
    • It is a square, snap-in connector latches with a simple push-pull motion and is keyed
  • Features:
    • High return loss
    • Low insertion loss
    • Telcordia style boots
    • Compliant with TIA, IEA, IEC certificates and RoHS Directives
  • Applications:
    • CATV, metro and LAN
    • Active device termination
    • Telecommunication networks
    • Industrial, medical, military
  • Insertion loss: ≤0.3dB, ≤0.2dB
  • Return Loss: ≥50dB, ≥55dB
  • Operating temperature: -40 to 75°C
  • Durability: ≤0.1dB typical change, 1000 matings
  • Available wavelength: SM= 1310 and 1550nm
  • Ordering information:
    • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA,FA
    • Ferrule end-face: PC, UPC, APC
    • Core type: single-mode (SM: 9/125µm), multimode (MM: 50/125µm or 62.5/125µm)
    • Cable quantity: DX means duplex, SX means simplex
    • Cable diameter: 3.0, 2.0 and 0.9mm
    • Cable length: 1, 2, 3 meter or customized
    • Cable type: PVC, LSZH, OM3, OFNR and OFNP
    • Color: yellow, orange, green, red, blue and more
  • SC/APC-SC/APC-SM-SX-3.0mm to 2m, white color
  • SC connector stands for subscriber connector, a general purpose push/pull style connector
  • It is a square, snap-in connector latches with a simple push-pull motion and is keyed
  • High return loss
  • Low insertion loss
  • Telcordia style boots
  • Compliant with TIA, IEA, IEC certificates and RoHS Directives
  • CATV, metro and LAN
  • Active device termination
  • Telecommunication networks
  • Industrial, medical, military
  • Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA,FA
  • Ferrule end-face: PC, UPC, APC
  • Core type: single-mode (SM: 9/125µm), multimode (MM: 50/125µm or 62.5/125µm)
  • Cable quantity: DX means duplex, SX means simplex
  • Cable diameter: 3.0, 2.0 and 0.9mm
  • Cable length: 1, 2, 3 meter or customized
  • Cable type: PVC, LSZH, OM3, OFNR and OFNP
  • Color: yellow, orange, green, red, blue and more
