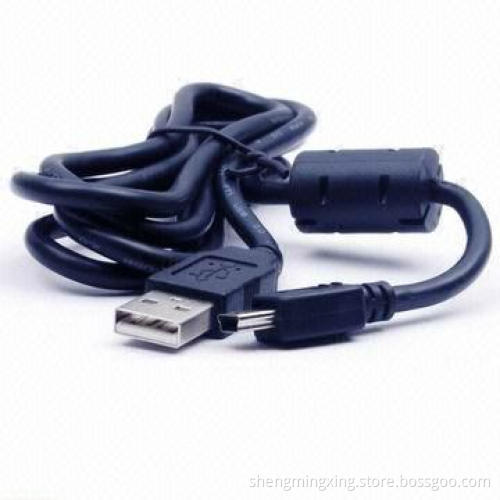

High Speed Mini USB Cable with Anti-magnetic Shield

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

With anti-magnetic shield

Polar: A male to B female

Appliance: computer, mobile device, mobile HDD and camera

Transfer speed: 480Mbps

Connector: nickel- and gold-plated

Conductor: pure copper

Outer diameter and length: customized

Performance: high ability to prevents most low frequency noise and interference

Test: passed voltage test and short test

Ferrite cores: optional as customer's requests

Cords: 30/28/26/24AWG

Electrical:

Mechanical:

Packing: polybag, head card, blister, slide card and gift box or customized

100% open and short test

Voltage: 300V DC, 5MΩ/10ms

Insulation resistance: 10MΩ/300V (minimum)

Contact resistance: 0.01Ω (maximum)

Shield: up to 65% braid

Working temperature: -25 to +80°C

Over mold: PVC, 70Pa and UL94V-0

Pre mold: PE low density

Contact: copper alloy

Insertion force: 35N (maximum)

Withdraw force: 10N (minimum)
