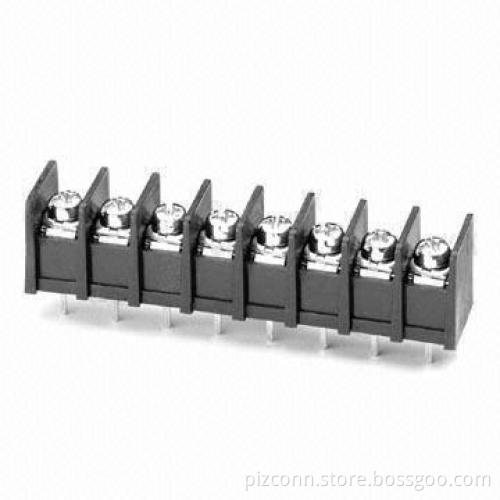

310 Series Barrier Type Terminal Block with 2 to 30 Poles and 20A, 300V Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Pitch: 7.62mm, 8.25mm, 9.5mm, and 10.0mm

Poles: 2 to 30

Rating: 20A, 300V

Insulation withstands voltage: 2,000V AC/min

Using temperature range: -40 to +105˚C

Screw torque value: 12lb-in

Suitable electric wire: 22-12AWG

Molded parts: PA66 UL94V-0 black

Terminal: brass 0.8t tin plated

Terminal screw: steel M3.5 Ni-plated
