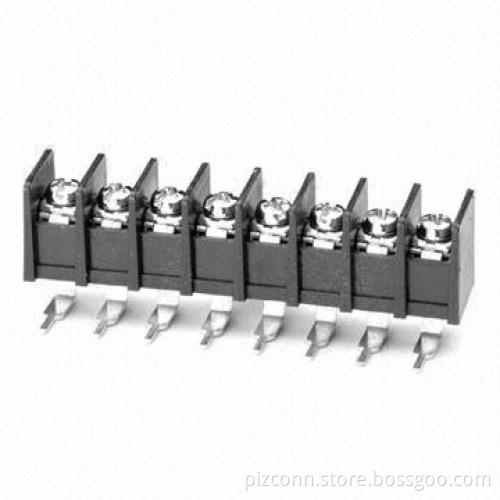

Terminal Block with -40 to 105 Degrees Celsius Temperature Range and 2 to 30 Poles
  • Terminal Block with -40 to 105 Degrees Celsius Temperature Range and 2 to 30 Poles
Terminal Block with -40 to 105 Degrees Celsius Temperature Range and 2 to 30 Poles

Terminal Block with -40 to 105 Degrees Celsius Temperature Range and 2 to 30 Poles

Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Pitch: 7.62, 8.25, 9.5 and 10.0mm
  • Poles: 2 to 30
  • Rating: 20A, 300V
  • Insulation withstands voltage: 2,000V AC/minimum
  • Using temperature range: -40 to 105˚C
  • Screw torque value: 12lb-in
  • Suitable electric wire: 22 to 12AWG
  • Molded parts: PA66 UL94V-0 black
  • Terminal: brass 0.8t tin plated
  • Terminal screw: steel M3.5 nickel-plated
