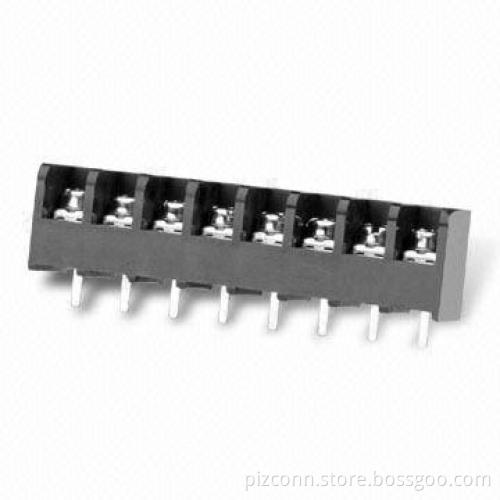

Terminal Block with 2,000V AC Voltage, Pitch of 6.35, 7.62, 8.25, 9.5 and 10.0mm
  • Terminal Block with 2,000V AC Voltage, Pitch of 6.35, 7.62, 8.25, 9.5 and 10.0mm
Terminal Block with 2,000V AC Voltage, Pitch of 6.35, 7.62, 8.25, 9.5 and 10.0mm

Terminal Block with 2,000V AC Voltage, Pitch of 6.35, 7.62, 8.25, 9.5 and 10.0mm

Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Pitch: 6.35, 7.62, 8.25, 9.5 and 10.0mm
  • Poles: 2 to 30
  • Rating: 10A, 300V
  • Insulation withstands voltage: 2,000V AC/min
  • Using temperature range: -40 to 105˚C
  • Screw torque value: 5.3lb-in
  • Suitable electric wire: 22 to 18AWG
  • Molded parts: PA66 UL94V-0 black
  • Terminal: brass 0.8t tin plated
  • Terminal screw: steel M3.0 nickel-plated
