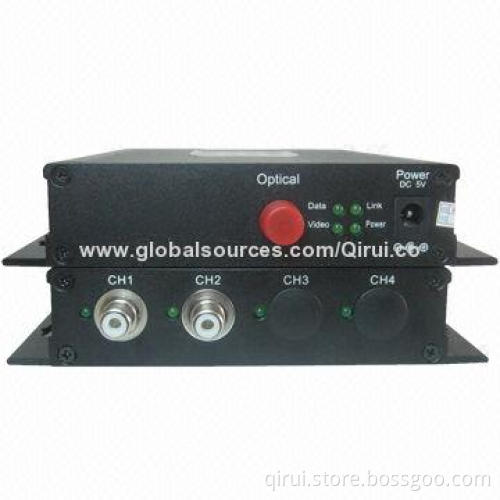

2CH Video 1CH Data 4CH Audio to SM FC 20km Video Data Fiber-optic Multiplexer

2CH Video 1CH Data 4CH Audio to SM FC 20km Video Data Fiber-optic Multiplexer

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Descriptions:

Model: 2V1D4A
Transmitter + receiver fiber mode: single-mode
Wavelengths: 1,310Nm/1,550Nm
Optical power budget: 12dB
Maximum transmission distance: 20km
Fiber-optic video transmitter and receiver transmission: 1-channel digital composite video and 1 return data, the data supports RS485, RS232, RS422 protocols
Standalone: insert card version also available, which can be inserted into our 16-slot, 19-inch 2U or 4U rack-mountable card cage
Standard: single-mode 20km (multimode also available, which supported for distances up to 2.0km)

Key features:

Supports point-to-point or daisy-chain connection
Uncompressed digital composite video over one fiber
Compatible with all PAL, NTSC, SECAM video systems
Data supports RS485 (2-wire or 4-wire), RS232, RS422, contact closure
Single-mode fiber supports for distances up to 100km
LED status provides rapid indication of operating parameters
No EMI or RFI and no ground loops
Supports coarse wavelength division multiplexing (CWDM) standalone
Produce according to customer's specifications, providing OEM

Specifications:

Video connectors:
- Number of channels: 1 channel video
- Video: 75Ω BNC (gold center pin)
- Input/output impedance: BNC 75Ω data 3-pin terminal block
- Input/output compatibility: PAL, NTSC, SECAM optical FC (standard)
- Input/output voltage: 1.0Vp-p standalone power screw terminal block
- Bandwidth: 6.5MHz rack power AC line card
- Bit resolution: 8-bit digital transmission electrical and mechanical
- Differential gain: < 1.5%
- Input power requirements: DC 5V at 2A
- Differential phase: <1.5°
- Power adapter: AC 100-240V
- Tilt: <5%
- Power consumption: <3W
- Signal-to-noise ratio (SNR): >67dB
- Shipping weight: 1.2kg (includes TX and RX)
Data:
- Data formats: RS485 (2-wire or 4-wire), RS232/422, contact closure
- Data rate: DC to 115.2Kbps
- Bit error rate: 10E-9
Environmental:
- Operating temperature: -45-75°C
- Storage temperature: -45-85°C
- Relative humidity: 0-95% (non-condensing)
- MTBF: >100,000 hours

Model: 2V1D4A

Transmitter + receiver fiber mode: single-mode

Wavelengths: 1,310Nm/1,550Nm

Optical power budget: 12dB

Maximum transmission distance: 20km

Fiber-optic video transmitter and receiver transmission: 1-channel digital composite video and 1 return data, the data supports RS485, RS232, RS422 protocols

Standalone: insert card version also available, which can be inserted into our 16-slot, 19-inch 2U or 4U rack-mountable card cage

Standard: single-mode 20km (multimode also available, which supported for distances up to 2.0km)

Supports point-to-point or daisy-chain connection

Uncompressed digital composite video over one fiber

Compatible with all PAL, NTSC, SECAM video systems

Data supports RS485 (2-wire or 4-wire), RS232, RS422, contact closure

Single-mode fiber supports for distances up to 100km

LED status provides rapid indication of operating parameters

No EMI or RFI and no ground loops

Supports coarse wavelength division multiplexing (CWDM) standalone

Produce according to customer's specifications, providing OEM

Video connectors:
