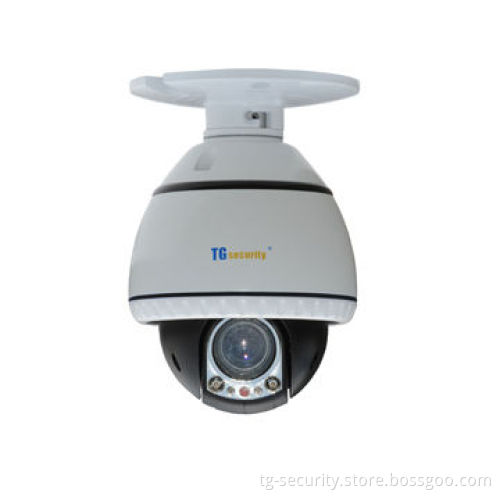

CCTV IR Mini High-speed Dome Camera with 600TVL, 12x Samsung Zoom Module

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

12x optical and 16x digital zoom

Illumination: up to 0.02-lux

F1.8, f: 3.94 to 46.05mm and auto-iris lens

Pan and tilt speed up to 300°/second

Supports auto-flip, tilt degree up to 180°

360° rotation and 128 preset positions

4-tour (20 action entities/tour), 4-pattern and 8 swings

RS485, Pelco-D/-P protocol auto detect

8-privacy zones

Parking action setup

Pan/tilt position and zoom times displayable

Aluminum alloy vandal-resistant housing

Built-in fan (default not included)

Specifications:

Signal mode: PAL/NTSC

Sensor: 1/4-inch interline transfer CCD

Effective pixels: (P/N): (H) 752 x (V) 582/(H) 768 x (V) 494p

Resolutions:

Color: 500TVL
B/W: 570TVL

Illumination:

Color: 0.2-lux
B/W: 0.02-lux
IRE: 50-lux
Optical zoom: 12x
Digital zoom: 16x

F1.8, f: 3.94 to 46.05mm

White balance: automatic

Signal-to-noise ratio: >50dB

OSD menu: English

Preset position: 128

Private masking: 8 zones

Address range: 0 to 255

Communication: RS485

Baud-rate: 2,400/4,800/9,600/19,200MHz

Protocol: Pelco-P/-D auto detected or others can be customized

Input voltage: 12V DC

Parking action: home place/swing/tour/pattern

Device title: display on/off

P/T position: display on/off

Temperature info: display on/off

Pan range: 0 to 360° continuously

Pan speed range: 0.1 to 300°/second

Tilt range: 0 to 180° auto flip on/off

Tile speed range: 0.1 to 300°/second

Precision: 0.05°

Housing: aluminum alloy and vandal-resistant housing

Working temperature range: 0 to 50°C (with fan and heater, -30 to 70°C)

Rated power supply: 12V DC/0.8A

Dimensions:

Dome: 107.7mm
Housing: 128 x 187mm

Packing:

Carton size: 208 x 208 x 212mm
Weight: 1.8kg

Color: 500TVL

B/W: 570TVL

Color: 0.2-lux

B/W: 0.02-lux

IRE: 50-lux

Optical zoom: 12x

Digital zoom: 16x

Dome: 107.7mm

Housing: 128 x 187mm

Carton size: 208 x 208 x 212mm

Weight: 1.8kg
