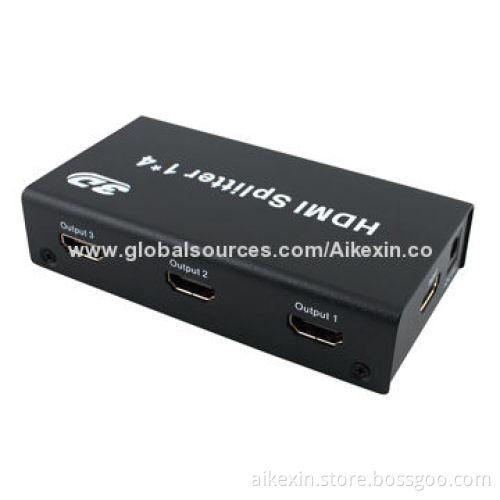

1x4 HDMI Splitter

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Distributes 1 HDMI source to 4 HDMI Displays simultaneously
Supports resolution up to 1,080p, cascades above 4 layers
Supports high definition audio: Dolby TrueHD, DTS-HD Master audio
Support 3D video format
DC 5V power
1x4 splitter supports sharp resolution up to 1,080P. It offers HD video solution for super market, shopping mall, HDTV,STB, DVD and projector factory, data control center, conference rooms, education and training, luxurious house, home theaters

Specification:

HDMI version: HDMI 1.4V
HDCP version: HDCP1.2
HDMI resolution: 24/50/60fs/1,080p/1,080i/720p/576p/576i/480p/480i
Support video color format: 24 bits/deep color 30, 36 bits
Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Maximum bandwidth: 225MHz
Maximum transmission bandwidth: 6.75Gbps
Input/output TMDS signal: 0.5-1.5V p-p(TTL)
Input/output DDC signal: 5V p-p (TTL)
Input cable distance: ≤15m AWG26 HDMI 1.4standard cable
Output cable distance: ≤25m AWG26 HDMI 1.4 standard cable

Power adapter format:

Input: (50HZ, 60HZ) 100V-240V AC
Output: 5V DC
Operating temperature range: -15 to +55°C
Operating humidity range: 5 to 90% RH (no condensation)

Distributes 1 HDMI source to 4 HDMI Displays simultaneously

Supports resolution up to 1,080p, cascades above 4 layers

Supports high definition audio: Dolby TrueHD, DTS-HD Master audio

Support 3D video format

DC 5V power

1x4 splitter supports sharp resolution up to 1,080P. It offers HD video solution for super market, shopping mall, HDTV,STB, DVD and projector factory, data control center, conference rooms, education and training, luxurious house, home theaters

HDMI version: HDMI 1.4V

HDCP version: HDCP1.2

HDMI resolution: 24/50/60fs/1,080p/1,080i/720p/576p/576i/480p/480i

Support video color format: 24 bits/deep color 30, 36 bits

Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum bandwidth: 225MHz

Maximum transmission bandwidth: 6.75Gbps

Input/output TMDS signal: 0.5-1.5V p-p(TTL)

Input/output DDC signal: 5V p-p (TTL)

Input cable distance: ≤15m AWG26 HDMI 1.4standard cable

Output cable distance: ≤25m AWG26 HDMI 1.4 standard cable

Input: (50HZ, 60HZ) 100V-240V AC
