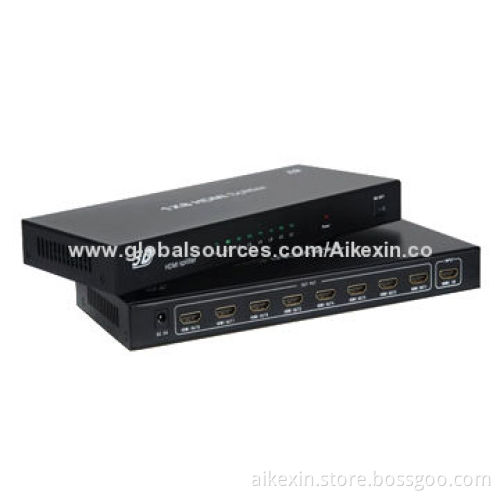

HDMI Splitter, 1X8

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Distributes 1 HDMI source to 8 HDMI displays simultaneously
Supports all mandatory and several optional 3D formats
Supports high definition resolutions: 4KX2K at 24Hz, 1080p at 60Hz, 720p/1080i at 120Hz
Supports digital audio format, such as high definition audio: Dolby TrueHD and DTS-HD Master audio
Power supply: DC 5V
Supports all mandatory and several optional 3D formats, maintains sharp HDTV resolution up to 1080p full HD and 4KX2K
Offers HD video solution for super market, shopping mall, HD TV, STB, DVD, projector factory, data control center, conference rooms, education, training , luxurious house and home

Specifications:

HDMI version: 1.4vHDCP version: HDCP1.2HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Supports video color format: 24-bit/deep color 30-/36-bit
Supports audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Maximum bandwidth: 225MHzMaximum transmission bandwidth: 6.75Gbps
Input/output TMDS signal: 0.5 to 1.5Vp-p (TTL)
Input/output DDC signal: 5Vp-p (TTL)
Input cable distance: ≤15m (AWG26 HDMI 1.4standard cable)
Output cable distance: ≤25m (AWG26 HDMI 1.4 standard cable)
Power adapter format:
- Operating temperature range: -15 to 55°C
- Operating humidity range: 5 to 90% RH (no condensation)
Inputs: 100 to 240V AC at 50/60Hz
Output: 5V DC

Distributes 1 HDMI source to 8 HDMI displays simultaneously

Supports all mandatory and several optional 3D formats

Supports high definition resolutions: 4KX2K at 24Hz, 1080p at 60Hz, 720p/1080i at 120Hz

Supports digital audio format, such as high definition audio: Dolby TrueHD and DTS-HD Master audio

Power supply: DC 5V

Supports all mandatory and several optional 3D formats, maintains sharp HDTV resolution up to 1080p full HD and 4KX2K

Offers HD video solution for super market, shopping mall, HD TV, STB, DVD, projector factory, data control center, conference rooms, education, training , luxurious house and home

HDMI version: 1.4vHDCP version: HDCP1.2HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Supports video color format: 24-bit/deep color 30-/36-bit

Supports audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum bandwidth: 225MHzMaximum transmission bandwidth: 6.75Gbps

Input/output TMDS signal: 0.5 to 1.5Vp-p (TTL)

Input/output DDC signal: 5Vp-p (TTL)

Input cable distance: ≤15m (AWG26 HDMI 1.4standard cable)

Output cable distance: ≤25m (AWG26 HDMI 1.4 standard cable)

Power adapter format:
