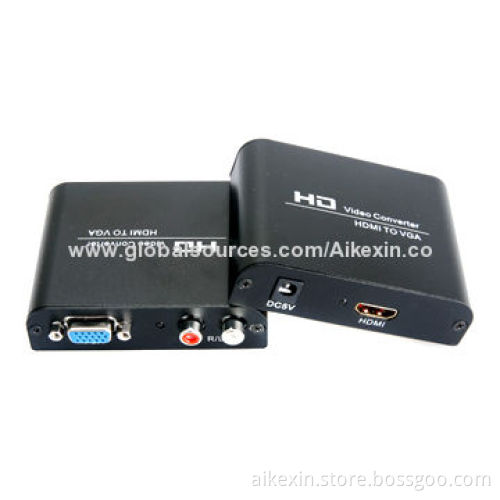

HDMI to VGA Converter

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

HDMI into VGA video and R/L audio output
Install in seconds, no need of setting
HDMI to VGA converter, supports 1,080P

Features:

This HDMI converter has many features that enable it to perform in a superior manner
Among those features you will find:
- Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
- Conversion: it could convert complete HDMI into VGA video and R/L audio output
- Supports analogue video output up to UXGA and 1,080p with 10-bit DAC
- Easy to use: install in seconds, no need of setting
Signal input/output:
- Accessories: adapter AC Power adapter: US, UK standard and so on
- User manual: English version
Input video signal: 0.5-1.0V p-p
Input DDC signal: 5V p-p (TTL)
Input connection: HDMI A female (19 pins)
Output connection: VGA, R/L
HDMI video input format: 480i/576i/480p/576p/720p/1,080i/1,080p
VGA video output format: 480i/576i/480p/576p/720p/1,080i/1,080p
Audio output format: 2 channels LPCM

Operating frequency:

Vertical frequency range: 50/60Hz
Input video amplifier bandwidth: 1.65Gpbs/165MHz
Mechanical:
- Size (W x H x D): 88 x 25.5 x 68mm
Limited warranty: 1 year parts and labor
Environmental:
- Operating temperatures: 0 to 70 °C Operating humidity range: 10 to 85% RH (no condensation)
- Storage temperatures: -10 to 80°C
- Storage humidity range: 5 to 95% RH (no condensation)

HDMI into VGA video and R/L audio output

Install in seconds, no need of setting

HDMI to VGA converter, supports 1,080P

This HDMI converter has many features that enable it to perform in a superior manner

Among those features you will find:

Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input
Conversion: it could convert complete HDMI into VGA video and R/L audio output
Supports analogue video output up to UXGA and 1,080p with 10-bit DAC
Easy to use: install in seconds, no need of setting

Signal input/output:

Accessories: adapter AC Power adapter: US, UK standard and so on
User manual: English version

Input video signal: 0.5-1.0V p-p

Input DDC signal: 5V p-p (TTL)

Input connection: HDMI A female (19 pins)

Output connection: VGA, R/L

HDMI video input format: 480i/576i/480p/576p/720p/1,080i/1,080p

VGA video output format: 480i/576i/480p/576p/720p/1,080i/1,080p

Audio output format: 2 channels LPCM

Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input

Conversion: it could convert complete HDMI into VGA video and R/L audio output

Supports analogue video output up to UXGA and 1,080p with 10-bit DAC

Easy to use: install in seconds, no need of setting

Accessories: adapter AC Power adapter: US, UK standard and so on

User manual: English version

Vertical frequency range: 50/60Hz

Input video amplifier bandwidth: 1.65Gpbs/165MHz

Mechanical:

Size (W x H x D): 88 x 25.5 x 68mm

Limited warranty: 1 year parts and labor

Environmental:

Operating temperatures: 0 to 70 °C Operating humidity range: 10 to 85% RH (no condensation)
Storage temperatures: -10 to 80°C
Storage humidity range: 5 to 95% RH (no condensation)

Size (W x H x D): 88 x 25.5 x 68mm

Operating temperatures: 0 to 70 °C Operating humidity range: 10 to 85% RH (no condensation)

Storage temperatures: -10 to 80°C

Storage humidity range: 5 to 95% RH (no condensation)
