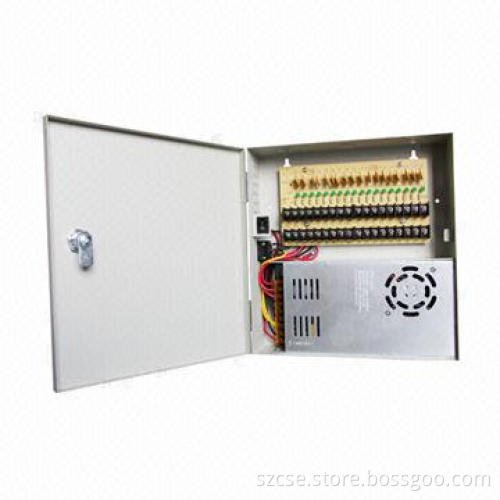

12V 30A 18-channel UL-approved CCTV Power Supply Box with Output Individual PTC and LED Indicator

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input:

Protections:

Short-circuit protection:

Insulation:

Environment:

Dimensions: 302 x 202 x 61mm

Net weight: 1,850g

Input voltage range: 100 to 240V AC, 50 to 60Hz

Output connector: 18 channel

Maximum power: 3,600W

Output voltage: 12V DC, ±5%

Ripple wave (mVp-p): <1%

Linear modulate: ±0.5% (maximum)

Temperature coefficient: ±0.02%/°C

Start time: ≤3s (240V AC input, io: 100%)

Guard time: ≥20ms (240V AC input, io: 100%)

Output standard: 12V/15A, 18-channel

Over-ride protection range: 115 to 200% VA, automatic recovery

1 channel: automatic recovery

Insulation strength: 1,500V AC/10mA, 1 minute

Insulation resistance: ≥30MΩ, 500V DC

Working temperatures: 0 to 40°C, 10 to 90% RH

Storage temperatures: -20 to 60°C, 10 to 90% RH
