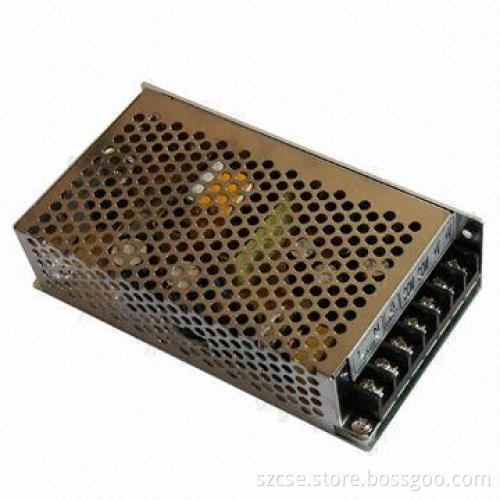

12V/10A/120W Switching Power Supply SMPS with High Efficiency
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- High efficiency
- 100% full load burn-in test
- Output:
- Voltage: 12V DC
- Voltage tolerance: +1%
- Rated current: 10A
- Current range: 0 to 10A
- Rated power: 120W
- Ripple and noise: 100mVp-p
- Voltage range: +10%
- Setup, rise, hold time: 600, 20, 24ms/230V AC
- Input:
- Voltage range: 170 to 264V AC
- Frequency: 47 to 63Hz
- Selected by switch: 235 to 373V DC
- Current: 1.4A/230V AC
- Efficiency: 80%
- Inrush current cold start: 35A/230V AC
- Leakage current less than 3.5mA/240V AC
- Safety standard design refer to UL 1012
- EMC standard design refer to FCC Part 15J conduction Class B
- Voltage: 12V DC
- Voltage tolerance: +1%
- Rated current: 10A
- Current range: 0 to 10A
- Rated power: 120W
- Ripple and noise: 100mVp-p
- Voltage range: +10%
- Setup, rise, hold time: 600, 20, 24ms/230V AC
- Voltage range: 170 to 264V AC
- Frequency: 47 to 63Hz
- Selected by switch: 235 to 373V DC
- Current: 1.4A/230V AC
- Efficiency: 80%
- Inrush current cold start: 35A/230V AC
- Leakage current less than 3.5mA/240V AC
