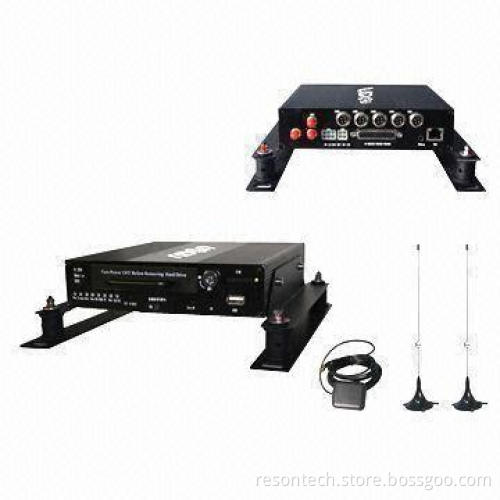

HDD mobile DVR, supports GPS tracking and Wi-Fi download, H.264, 4CH full D1, USB and SD card backup

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

4CH video and audio input with special plug
H.264 for 4CH D1 record resolution
Supports independent dual stream network transmission
Built-in GPS module
Built-in Wi-Fi module
Built-in heater module (optional)
Built-in CAN bus interface
Support external G-sensor (optional)
Independent 6 vehicle status ports, 1 for speed
4CH alarm-in and 2CH alarm-out
Alarm picture snapshot
Independent 5/12V output

Specifications:

Operating system: Linux
Storage capacity: 2.5 inches SATA HDD, 1TB (maximum)
Video input: 4CH, 1.0Vp-p, 75Ω
Video output: 1CH, 1.0Vp-p, 75Ω
Compression: H.264
Image resolution:
- D1
  - PAL: 704 x 576 pixels
  - NTSC: 704 x 480 pixels
Record resolution: D1
Dual stream network transmission: independent CIF
Playback video frame:

PAL: 1 to 25fps

NTSC: 1 to 30fps
Record code rate: 16kbps to 2Mbps, adjustable anddefinable
Audio compression: PCM
Audio input: 4 channels, 3Vp-p line, 1kΩ
Audio output: 1 channel, 2Vp-p line, 600Ω
Communication port: RJ45, RS232, RS422, RS485, USB, S-Video andCAN bus
3G module: WCDMA and HSPA
GPS module: SiRF chip
Wi-Fi module: 802.11b/g/n
G-sensor: external (optional)
Independent 6 vehicle status ports: door, left/right turn,brake, reverse and speed
Alarm-in: 4CH, passive
Alarm-out: 2CH, electric relay (active)
Record mode: continuous, cycle and alarm
Video search mode: by channel, time, record type and recordpath
Text overlay: supported (plate number, time and vehiclestatus)
On type: schedule, ignition
Off type: schedule, off delay (0 to 60 minutes) after ignitionoff
Heater module: optional
Power consumption: 8W (without communication module)
Independent output power: 5 or 12V DC at 2A
Input voltage: 8 to 36V
Working temperature: 0 to 60°C (customized)
Working humidity: 10 to 95% RH
Dimensions: (L) 176 x (W) 182 x (H) 42mm
Weight: 1.25kg (without HDD)

4CH video and audio input with special plug

H.264 for 4CH D1 record resolution

Supports independent dual stream network transmission

Built-in GPS module

Built-in Wi-Fi module

Built-in heater module (optional)

Built-in CAN bus interface

Support external G-sensor (optional)

Independent 6 vehicle status ports, 1 for speed

4CH alarm-in and 2CH alarm-out

Alarm picture snapshot

Independent 5/12V output

Operating system: Linux

Storage capacity: 2.5 inches SATA HDD, 1TB (maximum)

Video input: 4CH, 1.0Vp-p, 75Ω

Video output: 1CH, 1.0Vp-p, 75Ω

Compression: H.264

Image resolution:

D1
- PAL: 704 x 576 pixels
- NTSC: 704 x 480 pixels

Record resolution: D1

Dual stream network transmission: independent CIF

Playback video frame:

PAL: 1 to 25fps

NTSC: 1 to 30fps

Record code rate: 16kbps to 2Mbps, adjustable anddefinable

Audio compression: PCM

Audio input: 4 channels, 3Vp-p line, 1kΩ

Audio output: 1 channel, 2Vp-p line, 600Ω

Communication port: RJ45, RS232, RS422, RS485, USB, S-Video andCAN bus

3G module: WCDMA and HSPA

GPS module: SiRF chip

Wi-Fi module: 802.11b/g/n

G-sensor: external (optional)

Independent 6 vehicle status ports: door, left/right turn,brake, reverse and speed

Alarm-in: 4CH, passive

Alarm-out: 2CH, electric relay (active)

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and recordpath

Text overlay: supported (plate number, time and vehiclestatus)

On type: schedule, ignition

Off type: schedule, off delay (0 to 60 minutes) after ignitionoff

Heater module: optional

Power consumption: 8W (without communication module)

Independent output power: 5 or 12V DC at 2A

Input voltage: 8 to 36V

Working temperature: 0 to 60°C (customized)

Working humidity: 10 to 95% RH

Dimensions: (L) 176 x (W) 182 x (H) 42mm

Weight: 1.25kg (without HDD)

PAL: 704 x 576 pixels
NTSC: 704 x 480 pixels

PAL: 704 x 576 pixels

NTSC: 704 x 480 pixels
