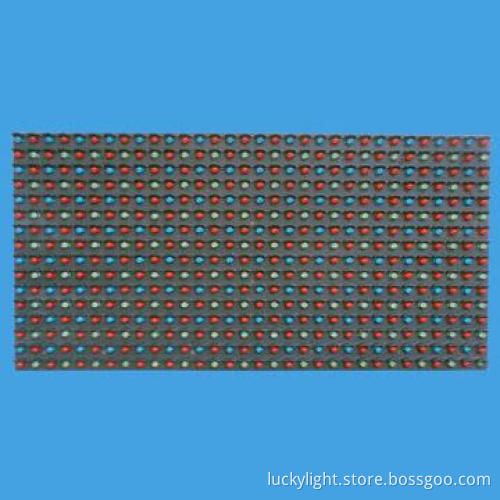

PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply
  • PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply
  • PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply
PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply
PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply

PH20 Outdoor Full Color LED Module, 100 to 240V AC, 50Hz Power Supply

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Pixel pitch: 20mm
    • Pixel density: 2,500 pixels/m²
    • Refresh rate: e600Hz
    • Brightness: e6,500cd/m²
    • Pixel composition: 1R1G1B
    • Module resolution: 16 x 8 pixels
    • LED encapsulation: DIP346
    • Module dimensions: 320 x 160mm
    • Optimal viewing distance: 20 to 160m
    • Viewing angle: 110°
    • White balance temperature: 6,500K (adjustment)
    • Contrast: 1,000:1
    • Working voltage: 5V DC
    • Power supply: 100 to 240V AC, 50Hz
    • Protections:
      • Front: IP65
      • Rear: IP54
    • Power consumption: 400W/m² (average) and 800W/m²(maximum)
    • Display interface: VGA, DVI
    • Storage temperature: 30 to 80°C
    • Humidity: 10 to 99% RH
    • Working temperature: -20 to 60°C
    • Humidity: 10- to 99% RH
    • Lifespan: 100,000 hours
    • Gap between modules: d1mm
    • EMI: meet EMC standard
  • Pixel pitch: 20mm
  • Pixel density: 2,500 pixels/m²
  • Refresh rate: e600Hz
  • Brightness: e6,500cd/m²
  • Pixel composition: 1R1G1B
  • Module resolution: 16 x 8 pixels
  • LED encapsulation: DIP346
  • Module dimensions: 320 x 160mm
  • Optimal viewing distance: 20 to 160m
  • Viewing angle: 110°
  • White balance temperature: 6,500K (adjustment)
  • Contrast: 1,000:1
  • Working voltage: 5V DC
  • Power supply: 100 to 240V AC, 50Hz
  • Protections:
    • Front: IP65
    • Rear: IP54
  • Power consumption: 400W/m² (average) and 800W/m²(maximum)
  • Display interface: VGA, DVI
  • Storage temperature: 30 to 80°C
  • Humidity: 10 to 99% RH
  • Working temperature: -20 to 60°C
  • Humidity: 10- to 99% RH
  • Lifespan: 100,000 hours
  • Gap between modules: d1mm
  • EMI: meet EMC standard
  • Front: IP65
  • Rear: IP54
