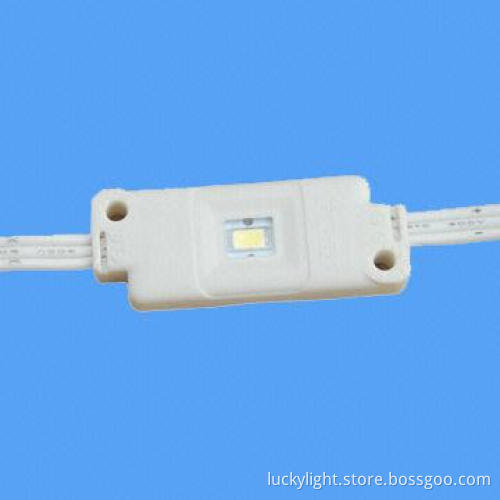

Waterproof IP65 SMD LED Module with 0.4W/piece, 12V DC Input Voltage, 115° Beam Angle
  • Waterproof IP65 SMD LED Module with 0.4W/piece, 12V DC Input Voltage, 115° Beam Angle
Waterproof IP65 SMD LED Module with 0.4W/piece, 12V DC Input Voltage, 115° Beam Angle

Waterproof IP65 SMD LED Module with 0.4W/piece, 12V DC Input Voltage, 115° Beam Angle

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Voltage: 12V DC
    • IP degree: the PC protective cover and all-inclusive aluminumprocess to guaranty IP65
    • Lamp shell: plastic
    • Power: 0.4W/piece
    • Color: white
    • Correlated color temperature: 6,500 to 7,000K
    • Operating temperature: -30 to 60°C
    • Storage temperature: -40 to 70°C
    • Net weight per piece: 9g
    • Warranty period: 36 months
    • Dimensions: 47.5 x 18.5 x 6mm
    • Compliant with CE standards and the RoHS Directive
    • Beam angle: 115°
    • Total lumen: 25lm ±5%
    • Luminous efficiency: 25lm/W
    • PF: e80%
  • Applications:
    • Channel letters backlighting
    • Indoor lighting and decorations
    • Architecture lighting
    • Advertising light box backlighting
    • Sign board backlighting
    • Commercial sign backlighting
  • Product selection guide:
    • Tolerable range for luminous flux, color rendering and ratedpower: ±10%
    • Tolerable range for operating voltage: ±5%
    • Testing temperature: 25 ±1°C
    • Warranty limited: 3 years or 13,000 hours, whichever comesfirst
    • The maximum cascade number is 42 pieces when supply power atone end
    • Do not exceed
  • Voltage: 12V DC
  • IP degree: the PC protective cover and all-inclusive aluminumprocess to guaranty IP65
  • Lamp shell: plastic
  • Power: 0.4W/piece
  • Color: white
  • Correlated color temperature: 6,500 to 7,000K
  • Operating temperature: -30 to 60°C
  • Storage temperature: -40 to 70°C
  • Net weight per piece: 9g
  • Warranty period: 36 months
  • Dimensions: 47.5 x 18.5 x 6mm
  • Compliant with CE standards and the RoHS Directive
  • Beam angle: 115°
  • Total lumen: 25lm ±5%
  • Luminous efficiency: 25lm/W
  • PF: e80%
  • Channel letters backlighting
  • Indoor lighting and decorations
  • Architecture lighting
  • Advertising light box backlighting
  • Sign board backlighting
  • Commercial sign backlighting
  • Tolerable range for luminous flux, color rendering and ratedpower: ±10%
  • Tolerable range for operating voltage: ±5%
  • Testing temperature: 25 ±1°C
  • Warranty limited: 3 years or 13,000 hours, whichever comesfirst
  • The maximum cascade number is 42 pieces when supply power atone end
  • Do not exceed
