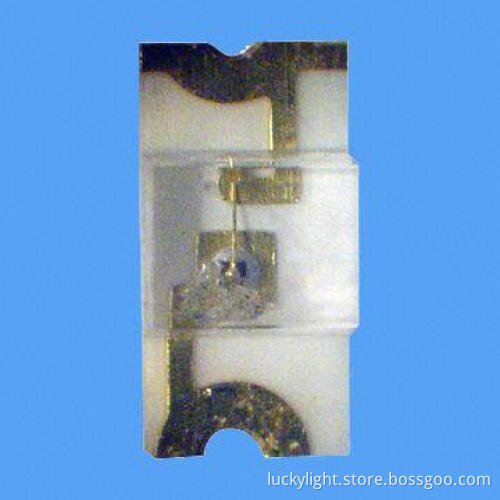

White Chip LED with 25mA Forward Current and 3.5 to 4.0V Forward Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Absolute ratings at Ta = 25° (maximum)

Parameters symbol unit (maximum)

Power dissipation: 100mW

Peak forward current: 100mA (1/10 duty cycle, 0.1ms pulsewidth)

Forward current: 25mA

Reverse voltage: 5V

Electrostatic discharge (ESD): 150V

Operating temperature range: -40 to 85°C

Storage temperature range: -40 to 90°C

Soldering temperature: 260°C for 5 seconds

Electrical optical characteristics at Ta = 25°

Parameters symbol (maximum)

Unit test condition (minimum)

Beam angle (2 ¸1/2): 120° (note 2)

Forward voltage: 3.5 to 4.0V

Reverse current: 50¼A

Luminous intensity: 70/140mcd (IF = 20mA)

Luminous intensity measurement allowance is ±10%¸1/2 is the off-axis angle at which the luminous intensity ishalf the axial luminous intensity
