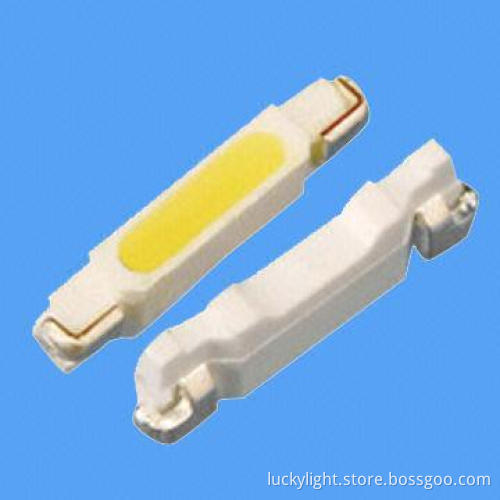

020 SMD White Emitted Color LED Components, 1,200mcd, 3.8 x 1.2 x 0.6mm, Applies to LCD Backlight
  • 020 SMD White Emitted Color LED Components, 1,200mcd, 3.8 x 1.2 x 0.6mm, Applies to LCD Backlight
020 SMD White Emitted Color LED Components, 1,200mcd, 3.8 x 1.2 x 0.6mm, Applies to LCD Backlight

020 SMD White Emitted Color LED Components, 1,200mcd, 3.8 x 1.2 x 0.6mm, Applies to LCD Backlight

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Power dissipation: 95mW
    • Peak forward current: 100mA
    • Forward current: 25mA
    • Reverse voltage: 5V
    • Departing liner from 25°C: 0.3mA
    • Luminous intensity: 1,000 and 1,200mcd
    • Viewing angle: 120°
    • Forward voltage: 2.8 to 3.8V
    • Dimensions: 3.8 x 1.2 x 0.6mm
    • Certificate: RoHS
  • Features:
    • Due to the packaging design, the SMD LED has wide viewingangle, low-power consumption, which make the LED ideal for lightguide applications
    • Smaller than lead-frame type components, thus enable smallerboard size, higher packaging density and reduces storage space
    • Utilizing advanced InGaN chip technology
    • Lightweight makes it ideal for miniature application andmore
  • Applications:
    • Automotive: backlighting in dashboards and switches
    • Telecommunication: indicators and backlighting in telephonesand faxes
    • Flat backlights for LCDs, switches and symbols
    • Indoor signboard uses
    • LCD back lights
    • Indicators
    • Illumination
    • Mobile phones
    • General uses
  • Power dissipation: 95mW
  • Peak forward current: 100mA
  • Forward current: 25mA
  • Reverse voltage: 5V
  • Departing liner from 25°C: 0.3mA
  • Luminous intensity: 1,000 and 1,200mcd
  • Viewing angle: 120°
  • Forward voltage: 2.8 to 3.8V
  • Dimensions: 3.8 x 1.2 x 0.6mm
  • Certificate: RoHS
  • Due to the packaging design, the SMD LED has wide viewingangle, low-power consumption, which make the LED ideal for lightguide applications
  • Smaller than lead-frame type components, thus enable smallerboard size, higher packaging density and reduces storage space
  • Utilizing advanced InGaN chip technology
  • Lightweight makes it ideal for miniature application andmore
  • Automotive: backlighting in dashboards and switches
  • Telecommunication: indicators and backlighting in telephonesand faxes
  • Flat backlights for LCDs, switches and symbols
  • Indoor signboard uses
  • LCD back lights
  • Indicators
  • Illumination
  • Mobile phones
  • General uses
