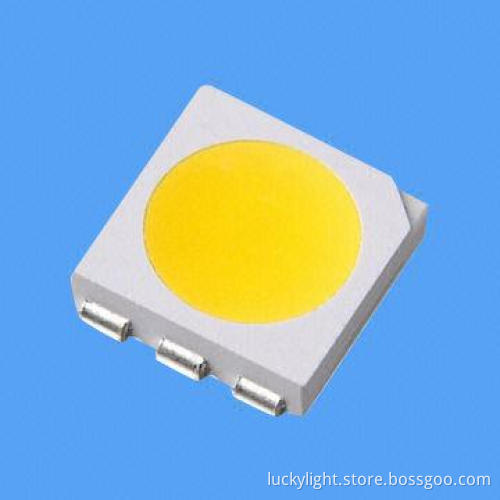

0.5W High-power LED with 5.0 x 5.0 x 1.3mm Small Size and 2.8/3.4/3.8V Forward Voltage

0.5W High-power LED with 5.0 x 5.0 x 1.3mm Small Size and 2.8/3.4/3.8V Forward Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Small size (L x W x H): 5.0 x 5.0 x 1.3mm
Luminous flux:
Minimum: 65lm
Typical: 80lm
Maximum: 101.8lm

Forward voltage: 2.8/3.4/3.8V

Wide viewing angle: 130°

Typical color temperature: 4,600, 6,800 and 15,000K

Small packaging with high-efficiency

High-flux output and high-luminance

Instant light (less than 100ns)

Very long operating lifespan: up to 100K hours

Low-voltage DC operated

Designed for high-current operating

Low-thermal resistance

Available colors: red, amber, yellow, green, blue andwhite

Compatible with automatic placement equipment

Highly reliable, the product itself will remain within RoHScompliant version

Small size (L x W x H): 5.0 x 5.0 x 1.3mm

Luminous flux:

Minimum: 65lm

Typical: 80lm

Maximum: 101.8lm

Descriptions:

Available in soft red, orange, yellow, green, blue andwhite

Due to the packaging design, the LED wide viewing angle andoptimized light coupling by inter reflector, this feature makes theSMT top LED ideal for light pipe applications

Low-current requirement makes this device ideal for portableequipment or any other application where power is at a premium

Applications:

Reading lights (cars, buses and aircraft)

Portable (flashlights and bicycles)

Bollards, security and gardens

Automotive rear combination lamps

Traffic signaling/beacons/rail crossing and waysides

Indoor/outdoor commercial and residential architectural

Edge-lit signs (exits point of sale)

LCD backlights/light guides

Linear lighting

Portable lighting

Architectural and landscaping lighting

Entertainment lighting
