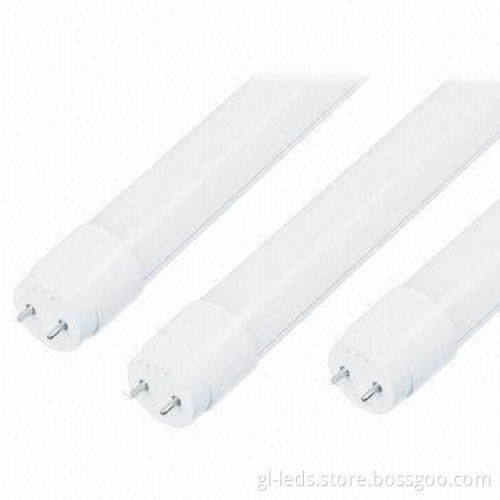

High-power LED Tubes with 100 to 240V AC Input Voltages
  • High-power LED Tubes with 100 to 240V AC Input Voltages
  • High-power LED Tubes with 100 to 240V AC Input Voltages
High-power LED Tubes with 100 to 240V AC Input Voltages
High-power LED Tubes with 100 to 240V AC Input Voltages

High-power LED Tubes with 100 to 240V AC Input Voltages

Get Latest Price
Payment Type:
T/T, Cash
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Cash
Product Description
Product Description
  • ETL control No: 4002567, CE, EMC, LVD, RoHS
  • CRI： >80Ra
  • Harmonic wave: LED: 6-7.5lm/pcs
  • Diameter: 26mm
  • Applications: Hospitals, libraries, trains, buses, offices and school lighting
  • 60, 90cm, 120, 150, 180, 240cm lengths are also available
  • Electrical parameters:
    • Frequency range: 50 to 60Hz
    • Power supply efficiency: >87%
    • Power factor: >0.95
    • Input voltages: 100 to 240V AC
  • Optical parameters:
    • Luminous efficiency: >90%
    • Color rendering index: >84Ra
    • LED efficiency: 90lm/W
    • Color temperatures:
      • Warm white: 2,900 to 3,300K
      • Commercial white (daylight white): 4,000 to 4,500K
      • Cool white: 5,700 to 6,500K
  • Other parameters:
    • Product patent: supported
    • Operating temperatures (humidity): -20 to 50°C (15 to 70% RH)
    • Stock environment temperature range: 0 to 45°C
    • Main materials: ABS + PC
    • IP rating: IP40
    • Lifespan: 30,000 hours
  • Features:
    • There is no harsh glare, direct replacement for fluorescent T8
    • Integrated thermal management system
    • Long lifespan more than 50,000 hours under normal use, especially for office lighting
    • Optimized light extraction system delivering high-lumen
    • No therefore interference, lead-free
  • Package:
    1. Adopt imported high-grade environmental friendly thick card as packaging material;
    2. Professional box lined design, the T8 LED tubes are well protected in transit
    3. Neutral screen
  • Note:
    1. When installing LED T8 tube, try to avoid the minefields, strong magnetic field and high-pressure regions
    2. Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires
    3. Install LED tubes in a well-ventilated place to ensure appropriate environment temperature
    4. Using T8 led tube, please check the local voltage compliance with product requirements
    5. To prohibit the live wiring, do check and confirm wiring is correct and no short-circuit then power on
    6. In case of failures, do not maintain in private
  • Frequency range: 50 to 60Hz
  • Power supply efficiency: >87%
  • Power factor: >0.95
  • Input voltages: 100 to 240V AC
  • Luminous efficiency: >90%
  • Color rendering index: >84Ra
  • LED efficiency: 90lm/W
  • Color temperatures:
    • Warm white: 2,900 to 3,300K
    • Commercial white (daylight white): 4,000 to 4,500K
    • Cool white: 5,700 to 6,500K
  • Warm white: 2,900 to 3,300K
  • Commercial white (daylight white): 4,000 to 4,500K
  • Cool white: 5,700 to 6,500K
  • Product patent: supported
  • Operating temperatures (humidity): -20 to 50°C (15 to 70% RH)
  • Stock environment temperature range: 0 to 45°C
  • Main materials: ABS + PC
  • IP rating: IP40
  • Lifespan: 30,000 hours
  • There is no harsh glare, direct replacement for fluorescent T8
  • Integrated thermal management system
  • Long lifespan more than 50,000 hours under normal use, especially for office lighting
  • Optimized light extraction system delivering high-lumen
  • No therefore interference, lead-free
