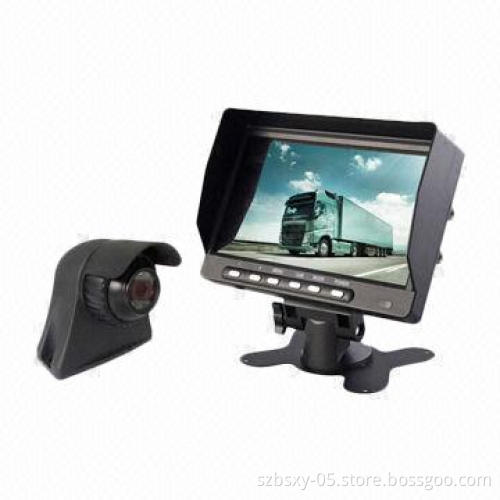

Camera and monitor systems, suitable for use on vehicles or crane
  • Camera and monitor systems, suitable for use on vehicles or crane
Camera and monitor systems, suitable for use on vehicles or crane

Camera and monitor systems, suitable for use on vehicles or crane

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Dimension: 7-inch color LCD monitor
    • TV system: NTSC/PAL auto
    • Resolution 800 x 3 x (RGB) x 480 pixels
    • Brightness: 400cd/¡
    • Contrast: 300:1
    • Aspect ratio: 169
    • Viewing angles: U: 50°/D: 60°, R/L: 70°
    • Rating: 20,000 hours
    • Products featured function
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian,
    • With remote control
    • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
    • Supports 2 cameras video simultaneous input
    • Supports 1cameras audio simultaneous input
    • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
    • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
    • Working voltages: 12 ~ 24V
    • Working current: 300mA
    • Self-protect of the DC voltage at the short-circuit
    • Operating temperatures: -10 to 65
    • Storage temperatures: -30 to 80
    • Image device: 1/4 Sharp CCD
    • Resolution: 420TV lines
    • Effective pixels: 512 x 582 pixels/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Sync. system: Internal
    • Horizontal sync. frequency: 15.625KHz/15.734KHz
    • Vertical sync. frequency: 50Hz/60Hz
    • Minimum illumination: 0Lux (Infrared lamps on)0.1Lux(day)/F1.2
    • Video output: 1.0vp-p, 75 Ohms
    • Gamma consumption: 0.45
    • AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: Auto
    • Electronic shutter range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
    • BLC: Auto
  • Products Performance:
    • Lens: 2.5mm
    • Angle: 120°
    • Infrared LED light: 9pcs
    • IR distance: 10m
    • Waterproof rate: IP68
    • Shell material: aluminum alloy
    • Bracket material: nylon fabric
    • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
    • Current consumption: Maximum 180mA
    • Power supply: DC 12V
  • Dimension: 7-inch color LCD monitor
  • TV system: NTSC/PAL auto
  • Resolution 800 x 3 x (RGB) x 480 pixels
  • Brightness: 400cd/¡
  • Contrast: 300:1
  • Aspect ratio: 169
  • Viewing angles: U: 50°/D: 60°, R/L: 70°
  • Rating: 20,000 hours
  • Products featured function
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian,
  • With remote control
  • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
  • Supports 2 cameras video simultaneous input
  • Supports 1cameras audio simultaneous input
  • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
  • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
  • Working voltages: 12 ~ 24V
  • Working current: 300mA
  • Self-protect of the DC voltage at the short-circuit
  • Operating temperatures: -10 to 65
  • Storage temperatures: -30 to 80
  • Image device: 1/4 Sharp CCD
  • Resolution: 420TV lines
  • Effective pixels: 512 x 582 pixels/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Sync. system: Internal
  • Horizontal sync. frequency: 15.625KHz/15.734KHz
  • Vertical sync. frequency: 50Hz/60Hz
  • Minimum illumination: 0Lux (Infrared lamps on)0.1Lux(day)/F1.2
  • Video output: 1.0vp-p, 75 Ohms
  • Gamma consumption: 0.45
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
  • BLC: Auto
  • Lens: 2.5mm
  • Angle: 120°
  • Infrared LED light: 9pcs
  • IR distance: 10m
  • Waterproof rate: IP68
  • Shell material: aluminum alloy
  • Bracket material: nylon fabric
  • Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
  • Current consumption: Maximum 180mA
  • Power supply: DC 12V
