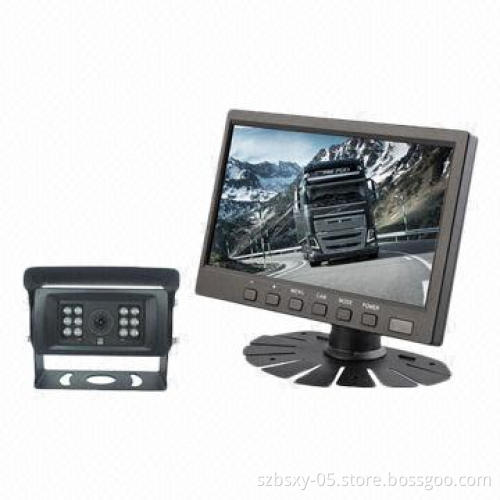

Auto car reversing camera system with digital car monitor, wide angle cameras for trucks
  • Auto car reversing camera system with digital car monitor, wide angle cameras for trucks
Auto car reversing camera system with digital car monitor, wide angle cameras for trucks

Auto car reversing camera system with digital car monitor, wide angle cameras for trucks

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Dimension: 7-inch Color LCD monitor
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian and Italian
    • Monitors can be optional with loudspeaker or not, users canadjust sound on the control
    • Supports 2 cameras video simultaneous input
    • Supports 1cameras audio simultaneous input
    • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
    • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
    • Working voltage: 12V
    • Self-protect of the DC voltage at the short-Circuit
    • Image device: 1/4 sharp CCD
    • Resolution: 420TV lines
    • TV systems: PAL/NTSC
    • Effective pixels: 512 x 582 pixels/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Sync. system: Internal
    • Horizontal sync. frequency: 15.625KHz/15.734KHz
    • Vertical sync. frequency: 50Hz/60Hz
    • Minimum illumination: 0Lux (infrared lamps on) 0 .1 Lux(day)/F1.2
    • Video output: 1.0vp-p, 75Ohm
    • Gamma consumption: 0.45
    • AGC: Auto
    • S/N ratio: Better than 48dB
    • White balance: Auto
    • Electronic shutter: 1/60 (NTSC)/1/50 (PAL)-1/10,000seconds
    • BLC: Auto
  • Products idiomatic performance:
    • Heavy-duty camera
    • Lens angle: 120°
    • Infrared LED light: 12pcs
    • IR distance: 15m
    • Waterproof rate: IP69K
    • Shell material: aluminum alloy
    • Bracket material: iron
    • Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
    • Current consumption: Max. 190mA
    • Power supply: DC 12V
  • Dimension: 7-inch Color LCD monitor
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian and Italian
  • Monitors can be optional with loudspeaker or not, users canadjust sound on the control
  • Supports 2 cameras video simultaneous input
  • Supports 1cameras audio simultaneous input
  • Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
  • In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
  • Working voltage: 12V
  • Self-protect of the DC voltage at the short-Circuit
  • Image device: 1/4 sharp CCD
  • Resolution: 420TV lines
  • TV systems: PAL/NTSC
  • Effective pixels: 512 x 582 pixels/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Sync. system: Internal
  • Horizontal sync. frequency: 15.625KHz/15.734KHz
  • Vertical sync. frequency: 50Hz/60Hz
  • Minimum illumination: 0Lux (infrared lamps on) 0 .1 Lux(day)/F1.2
  • Video output: 1.0vp-p, 75Ohm
  • Gamma consumption: 0.45
  • AGC: Auto
  • S/N ratio: Better than 48dB
  • White balance: Auto
  • Electronic shutter: 1/60 (NTSC)/1/50 (PAL)-1/10,000seconds
  • BLC: Auto
  • Heavy-duty camera
  • Lens angle: 120°
  • Infrared LED light: 12pcs
  • IR distance: 15m
  • Waterproof rate: IP69K
  • Shell material: aluminum alloy
  • Bracket material: iron
  • Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
  • Current consumption: Max. 190mA
  • Power supply: DC 12V
