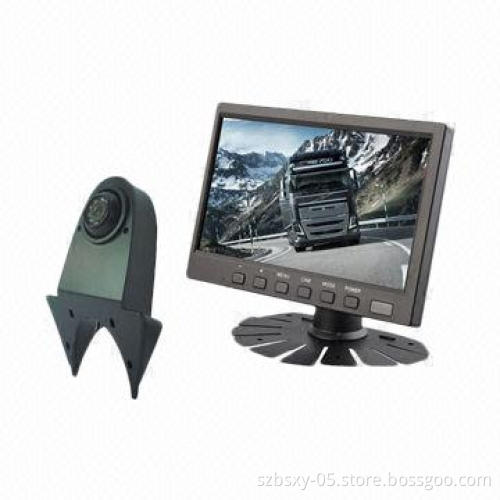

Auto car rear-view system with digital car monitor heavy-duty cameras for trucks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Dimension: 7-inch color LCD monitor
TV system: NTSC/PAL auto
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, Italian
Monitors can be optional with loudspeaker or not, users canadjust sound on the control
Supports 2 cameras video simultaneous input
Supports 1 camera audio simultaneous input
Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops
In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image
Working voltage: 12V
Self-protect of the DC voltage at the short-circuit
Image device: 1/4 Sharp CCD
Resolution: 420TV lines
Effective pixels: 512 x 582 pixels/512 x 492 pixels
Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Sync. system: Internal
Horizontal sync. frequency: 15.625KHz/15.734KHz
Vertical sync. frequency: 50Hz/60Hz
Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: Auto
Electronic shutter range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
BLC: Auto
Performance:
- Lens: 2.5mm
- Angle: 120°
- Infrared LED light: 9pcs
- IR distance: 10m
- Waterproof rate: IP68
- Shell material: aluminum alloy
- Bracket material: nylon fabric
- Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
- Current consumption: Maximum 180mA
- Power supply: DC 12V
