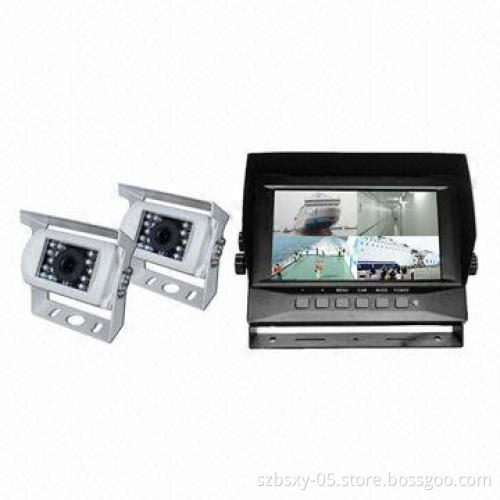

High Quality Waterproof IP69k Car Security Camera System with Digital Quad Monitor

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Rear-view system:
- 7-inch digital quad monitor
- Color CCD waterproof camera
- Rear-view/side view camera
- With CE, FCC, RoHS, E-mark standards
7-inch digital LCD Quad monitor:
- MDL#: JY-M750Q
- Video input: 4-channel input with Quad function
- Type: 16:9 wide screen
- Resolution: 800 RGB x 480 dots
- Color system: auto
- Power requirement: 12/32V DC
- Power consumption: d8.64W
- Waterproof: IP69K
- Operating temperatures: -10°C to 65°C
- Mirror/normal switch: yes
- Rear view camera
- MDL#: JY-663
- Sensor: 1/4 Sharp CCD
- Resolution:
  - N: 510 x 492 pixel
  - P: 500 x 582 pixels
- Lens: 2.5mm
- Minimum illumination: 0Lux (LED on)
- IR LEDs: 18 pieces
- Night vision distance: 45ft
- Waterproof: IP69K
- Viewing angle: 120°
- Voltage: 12V
- Operating temperature: -20 to 70

Specifications:

Monitors can be optional with loudspeaker or not, users canadjust sound on the control
Supports 4 cameras video and 4 cameras audio simultaneousinput
Can repeat the viewing picture, 1-60 seconds canadjustment
Single, dual, triple, Quad image for optional
Separate trigger control wire on each camera
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages: English, Dutch, French, Spanish,Russian, German, Italian
Mic: collects the environmental sound around the camera
Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than -5°C and itwills automatic stop heating when the temperature reaches30°C
Working voltage: 12V
Self-protect of the DC voltage at the short-circuit

Rear-view system:

7-inch digital quad monitor
Color CCD waterproof camera
Rear-view/side view camera
With CE, FCC, RoHS, E-mark standards

7-inch digital LCD Quad monitor:

MDL#: JY-M750Q
Video input: 4-channel input with Quad function
Type: 16:9 wide screen
Resolution: 800 RGB x 480 dots
Color system: auto
Power requirement: 12/32V DC
Power consumption: d8.64W
Waterproof: IP69K
Operating temperatures: -10°C to 65°C
Mirror/normal switch: yes
Rear view camera
MDL#: JY-663
Sensor: 1/4 Sharp CCD
Resolution:
- N: 510 x 492 pixel
- P: 500 x 582 pixels
Lens: 2.5mm
Minimum illumination: 0Lux (LED on)
IR LEDs: 18 pieces
Night vision distance: 45ft
Waterproof: IP69K
Viewing angle: 120°
Voltage: 12V
Operating temperature: -20 to 70

7-inch digital quad monitor

Color CCD waterproof camera

Rear-view/side view camera

With CE, FCC, RoHS, E-mark standards

MDL#: JY-M750Q

Video input: 4-channel input with Quad function

Type: 16:9 wide screen

Resolution: 800 RGB x 480 dots

Color system: auto

Power requirement: 12/32V DC

Power consumption: d8.64W

Waterproof: IP69K

Operating temperatures: -10°C to 65°C

Mirror/normal switch: yes

Rear view camera

MDL#: JY-663

Sensor: 1/4 Sharp CCD

Resolution:

N: 510 x 492 pixel
P: 500 x 582 pixels

Lens: 2.5mm

Minimum illumination: 0Lux (LED on)

IR LEDs: 18 pieces

Night vision distance: 45ft

Waterproof: IP69K

Viewing angle: 120°

Voltage: 12V

Operating temperature: -20 to 70

N: 510 x 492 pixel

P: 500 x 582 pixels

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Supports 4 cameras video and 4 cameras audio simultaneousinput

Can repeat the viewing picture, 1-60 seconds canadjustment

Single, dual, triple, Quad image for optional

Separate trigger control wire on each camera

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Multiple menu languages: English, Dutch, French, Spanish,Russian, German, Italian

Mic: collects the environmental sound around the camera

Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than -5°C and itwills automatic stop heating when the temperature reaches30°C

Working voltage: 12V

Self-protect of the DC voltage at the short-circuit
