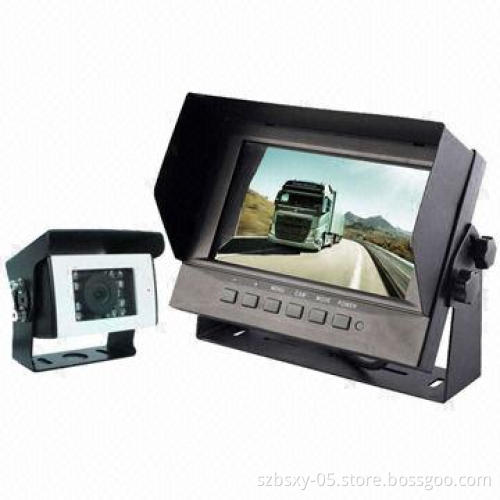

Car Reverse Camera System with 7-inch Waterproof Monitor Heavy-duty Cameras for Fire Trucks

Get Latest Price

Payment Type:: T/T in Aadvance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Aadvance

Product Description

Specifications:

Dimension: 7 inches digital color LCD monitor
TV systems: NTSC/PAL auto
Resolution: 800 X 3 X (RGB) X 480
Brightness: 400cd/¡
Contrast: 500:1
lattice distance: 0.192(H) x 0.1805(V)
Aspect ratio: 16:9
Viewing angles:
- U: 50°
- D: 60°
- R/L: 70°
Rating: 20,000 hours
Products featured functions
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages:English/Dutch/French/Portuguese/Spanish/Russian/German
With remote control
Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
Support 2 cameras video simultaneous input
Normal or mirrored picture can be switched separately on eachcamera
Separate trigger control wire on each camera
Monitor will automatically switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
The trigger delay time can be adjusted (0-4s) on eachcamera
Image device: 1/4 Sharp CCD
Resolution: 420TV lines
TV systems: PAL/ NTSC
Effective pixels: 512 x 582 pixels/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync. System: Internal
Horizontal Sync. Frequency: 15.625KHz/15.734KHz
Vertical Sync. Frequencies: 50/60Hz
Minimum illumination: 0Lux (infrared lamps on) 0 .1Lux(day)/F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: Auto
Electronic shutter: 1/60 (NTSC)/1/50 (PAL) - 1/10,000seconds
BLC: Auto

Products idiomatic performance:

Heavy-duty camera
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 18PCS
IR Distance: 15 m
Waterproof rate: IP69
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention
Current consumption: Max. 200mA

Dimension: 7 inches digital color LCD monitor

TV systems: NTSC/PAL auto

Resolution: 800 X 3 X (RGB) X 480

Brightness: 400cd/¡

Contrast: 500:1

lattice distance: 0.192(H) x 0.1805(V)

Aspect ratio: 16:9

Viewing angles:

U: 50°
D: 60°
R/L: 70°

Rating: 20,000 hours

Products featured functions

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Multiple menu languages:English/Dutch/French/Portuguese/Spanish/Russian/German

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Support 2 cameras video simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatically switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4s) on eachcamera

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

TV systems: PAL/ NTSC

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync. System: Internal

Horizontal Sync. Frequency: 15.625KHz/15.734KHz

Vertical Sync. Frequencies: 50/60Hz

Minimum illumination: 0Lux (infrared lamps on) 0 .1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: Auto

Electronic shutter: 1/60 (NTSC)/1/50 (PAL) - 1/10,000seconds

BLC: Auto

U: 50°

D: 60°

R/L: 70°

Heavy-duty camera

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 18PCS

IR Distance: 15 m

Waterproof rate: IP69

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention

Current consumption: Max. 200mA
