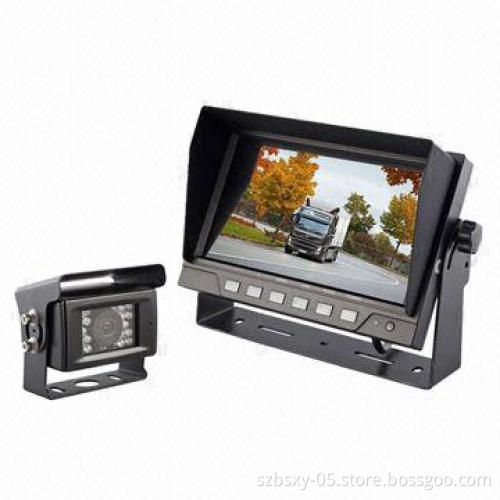

Car Reversing Camera System with 7-inch Monitor IP69K Night Vision Cameras for Trucks

Get Latest Price

Payment Type:: T/T in Aadvance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Aadvance

Product Description

Specifications:

Dimensions: 7-inch color LCD monitor
Resolution: 800 x 3 (RGB) x 480 pixels
TV system: NTSC/PAL
Multiple menu languages: English, Dutch, French, Spanish,Russian, German and Italian
Monitors can be optional with loudspeaker or not, users canadjust sound on the control
Screen display mode can be switched the day mode and night modeby pressing button
Supports 2 cameras video simultaneous input
Supports 1 camera audio simultaneous input
Separate trigger control wire on second camera
Monitor will automatic switch over the image to second cameraand back to the original mode when the trigger stops
In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image, trigger end aftershutdown
Working voltage range: 12-32V
Self-protection of the DC voltage at the short-circuit
Image device: 1/4 SHARP CCD
Resolution: 420TV lines
Effective pixels: 512 x 582 pixels/512 x 492 pixels
Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Sync. system: Internal
Horizontal sync. frequency: 15.625/15.734KHz
Vertical sync. frequency: 50/60Hz
Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: Auto
Electronic shutter speed range: 1/60 (NTSC)/1/50 (PAL)~1/10,000seconds
BLC: Auto
Products idiomatical performance:
- Heavy-duty camera
- Lens: 2.5mm
- Lens angle: 120°
- Infrared LED light: 18pcs
- IR distance: 15m
- Waterproof rate: IP69
- Shell material: aluminum alloy
- Bracket material: iron
- Dustproof, waterproof, hydrochloric acid prevention, explosionprevention
- Current consumption: Max. 200mA
- Power supply: DC12V
