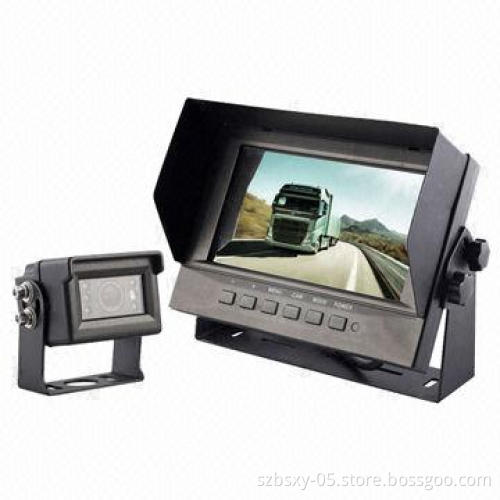

Car Backup Camera System with 7-inch Waterproof Monitor Heavy-duty Cameras for Fire Trucks

Get Latest Price

Payment Type:: T/T in Aadvance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Aadvance

Product Description

Specifications:

Dimension: 7-inch digital color LCD monitor
TV system: NTSC/PAL auto
Resolution: 800 x 3 X RGB x 480 pixels
Brightness: 400cd/¡
Contrast: 500:1
Lattice distance: 0.192(H) x 0.1805(V)
Aspect ratio: 16:9
Viewing angles: U: 50°/D: 60° and R/L: 70°
Rating: 20,000 hours
Products featured function
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosionprevention
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
With remote control
Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
Supports 2 cameras video simultaneous input
Normal or mirrored picture can be switched separately on eachcamera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
The trigger delay time can be adjusted (0-4s) on eachcamera
Image device: 1/4 SHARP CCD
Resolution: 420TV lines
Effective pixels: 512 x 582 pixels/ 512 x 492 pixels
Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Sync. system: Internal
Horizontal sync. frequency: 15.625KHz/15.734KHz
Vertical sync. frequency: 50Hz/60Hz
Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2
Video output: 1.0vp-p, 75Ohm
Gamma consumption: 0.45
AGC: Auto
S/N ratio: Better than 48dB
White balance: Auto
Electronic shutter range: 1/60 (NTSC)/1/50 (PAL) ~ 1/10,000seconds
BLC: Auto
Products idiomatical performance:
- Small sized
- Lens: 2.5mm
- Lens angle: 120°
- Infrared LED light: 5pcs
- IR distance: 10m
- Waterproof rate: IP68
- Shell material: aluminum alloy
- Bracket material: iron
- Dustproof, waterproof, hydrochloric acid prevention, explosionprevention
- Current consumption: Max. 180mA

Dimension: 7-inch digital color LCD monitor

TV system: NTSC/PAL auto

Resolution: 800 x 3 X RGB x 480 pixels

Brightness: 400cd/¡

Contrast: 500:1

Lattice distance: 0.192(H) x 0.1805(V)

Aspect ratio: 16:9

Viewing angles: U: 50°/D: 60° and R/L: 70°

Rating: 20,000 hours

Products featured function

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dustproof, waterproof, hydrochloric acid prevention, explosionprevention

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Supports 2 cameras video simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4s) on eachcamera

Image device: 1/4 SHARP CCD

Resolution: 420TV lines

Effective pixels: 512 x 582 pixels/ 512 x 492 pixels

Sensing area: 3.6mm x 2.7mm

Scanning system: 2:1 interlace

Sync. system: Internal

Horizontal sync. frequency: 15.625KHz/15.734KHz

Vertical sync. frequency: 50Hz/60Hz

Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: Auto

Electronic shutter range: 1/60 (NTSC)/1/50 (PAL) ~ 1/10,000seconds

BLC: Auto

Products idiomatical performance:

Small sized
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 5pcs
IR distance: 10m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: iron
Dustproof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: Max. 180mA

Small sized

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 5pcs

IR distance: 10m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: iron

Dustproof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: Max. 180mA
