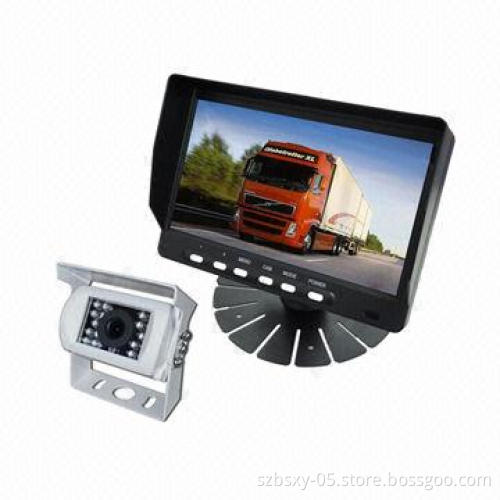

7-inch Car Reversing Systems for Heavy-duty Equipment/Trucks

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

Dimensions: 7-inch color LCD monitor

Resolution: 800 x 3 (RGB) x 480

TV systems: NTSC/PAL

Languages: English, Dutch, French, Spanish, Russian, German,Italian

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Screen display mode can be switched the day and night mode bypressing button

Supports 2-camera video simultaneous input

Supports 1 camera audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatically switch-over the image to secondcamera and back to the original mode when the trigger stops

In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image, trigger and aftershutdown

Working voltage: 12 - 32V

Self-protect of the DC voltage at the short-circuit camera

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: internal

Horizontal sync frequency: 15.625/15.734KHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0Lux (infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ω

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter: 1/60(NTSC)/1/50(PAL)-1/10,000 seconds

BLC: auto

Product's idiomatic performance:

Infrared LED light: 18pcs
IR distance: 15m
Waterproof rate: IP68
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: maximum 200mA
Power supply: DC 12V
Operating temperatures: -20 to 70°C, RH95% maximum
Storage temperature: -40 to 80°C, RH95% maximum

Product's featured functions are optional:

Chip Sony 420/480/520/560 line
Mic: collects the environmental sound around the camera
Self heating when environment is cold

Infrared LED light: 18pcs

IR distance: 15m

Waterproof rate: IP68

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: maximum 200mA

Power supply: DC 12V

Operating temperatures: -20 to 70°C, RH95% maximum

Storage temperature: -40 to 80°C, RH95% maximum

Chip Sony 420/480/520/560 line

Mic: collects the environmental sound around the camera

Self heating when environment is cold
