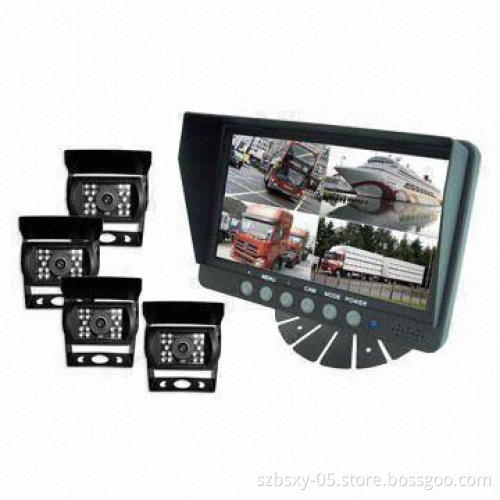

Car Rearview Camera Kit with Built-in Quad Screen, Support up to 4 Camera Inputs
  • Car Rearview Camera Kit with Built-in Quad Screen, Support up to 4 Camera Inputs
Car Rearview Camera Kit with Built-in Quad Screen, Support up to 4 Camera Inputs

Car Rearview Camera Kit with Built-in Quad Screen, Support up to 4 Camera Inputs

Get Latest Price
Payment Type:
T/T in advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in advance
Product Description
Product Description
  • Rear view camera system bulit in split control box support 12to 24V for truck and trailer
  • Main features
    • Built-in quad control box function
    • Support four camera inputs
    • With remote controller
    • Single View/Split view/Quad view selectable
    • 7 languages OSD display
    • PAL/NTSC optional, MIRROR/NORMAL image optional
    • Automatically turn on when the reversing gear is engaged
    • Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
    • With high-low voltage protection and short circuitprotection
  • Technical data
    • 7-inch TFT LCD monitor ,16:9
    • Wide view angle(CR>10): (up/down/left/right):40/40/60/60
    • Resolution:400 R.G.B x234 dots
    • Color system: PAL/NTSC(selectable)
    • Power requirement: 12/24V DC
    • Power consumption: d5W
    • Operating temperature: -20 to +70
    • Storage temperature: -30 to +80
    • Dimension: 183 (L) x 125 (W) x 38 (D)
  • Camera
    • SHARP or SONY CCD optional
    • 420TV line
    • Wide view angle
    • With 18pcs LEDs
    • Waterproof
  • Built-in quad control box function
  • Support four camera inputs
  • With remote controller
  • Single View/Split view/Quad view selectable
  • 7 languages OSD display
  • PAL/NTSC optional, MIRROR/NORMAL image optional
  • Automatically turn on when the reversing gear is engaged
  • Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
  • With high-low voltage protection and short circuitprotection
  • 7-inch TFT LCD monitor ,16:9
  • Wide view angle(CR>10): (up/down/left/right):40/40/60/60
  • Resolution:400 R.G.B x234 dots
  • Color system: PAL/NTSC(selectable)
  • Power requirement: 12/24V DC
  • Power consumption: d5W
  • Operating temperature: -20 to +70
  • Storage temperature: -30 to +80
  • Dimension: 183 (L) x 125 (W) x 38 (D)
  • SHARP or SONY CCD optional
  • 420TV line
  • Wide view angle
  • With 18pcs LEDs
  • Waterproof
