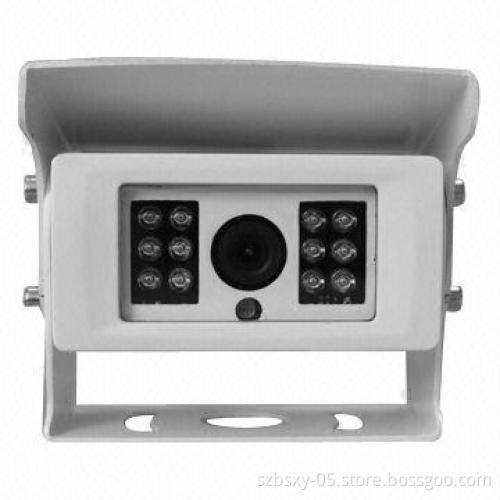

IP69K Waterproof Night Vision Car Rearview Camera with 420TVL Resolution

IP69K Waterproof Night Vision Car Rearview Camera with 420TVL Resolution

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Chip performance:
- Image device: 1/4-inch Sharp CCD
- Resolution: 420TV lines
- TV system: PAL/NTSC
- Effective pixels: 512 x 582/512 x 492 pixels
- Sensing area: 3.6 x 2.7mm
- Scanning system: 2:1 interlace
- Sync system: internal
- Horizontal sync frequency: 15.625/15.734kHz
- Vertical Sync frequency: 50/60Hz
- Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
- Video output: 1.0Vp-p, 75 Ohms
- Gamma consumption: 0.45
- AGC: auto
- S/N ratio: better than 48dB
- White balance: auto
- Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
- BLC: auto

Products idiomatical performance:

Heavy-duty camera
Lens: 2.5mm
Lens angle: 120°
Infrared LED lights: 28 pieces
IR distance: 20m
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid and explosionprevention
Current consumption: 230mA (maximum)
Power supply: 12V DC
Operating temperature: -20 to 70°C, 95% RH (maximum)
Storage temperature: -40 to 80°C, 95% RH (maximum)

Products featured functions are optional:

Chip CMOS
Chip Sony 420/480/520/560TV lines
Super wide angle (180°)
Mic: collects the environmental sound around the camera
Self heating: the cameras will entry the self-heating mode whenthe environmental
Working temperature is lower than -5°C and it willsautomatic stop heating when the temperature reaches 30°C
Mirror and non-mirror images (optional) (adjusted byscrew)
Superficial colors are optional: black, white, silver
Dimensions (L x W x H): 85 x 50 x 75mm
Net weight: 700g

Chip performance:

Image device: 1/4-inch Sharp CCD
Resolution: 420TV lines
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync system: internal
Horizontal sync frequency: 15.625/15.734kHz
Vertical Sync frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
Video output: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: auto

Image device: 1/4-inch Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: internal

Horizontal sync frequency: 15.625/15.734kHz

Vertical Sync frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2

Video output: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: auto

Heavy-duty camera

Lens: 2.5mm

Lens angle: 120°

Infrared LED lights: 28 pieces

IR distance: 20m

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid and explosionprevention

Current consumption: 230mA (maximum)

Power supply: 12V DC

Operating temperature: -20 to 70°C, 95% RH (maximum)

Storage temperature: -40 to 80°C, 95% RH (maximum)

Chip CMOS

Chip Sony 420/480/520/560TV lines

Super wide angle (180°)

Mic: collects the environmental sound around the camera

Self heating: the cameras will entry the self-heating mode whenthe environmental

Working temperature is lower than -5°C and it willsautomatic stop heating when the temperature reaches 30°C

Mirror and non-mirror images (optional) (adjusted byscrew)

Superficial colors are optional: black, white, silver

Dimensions (L x W x H): 85 x 50 x 75mm

Net weight: 700g
