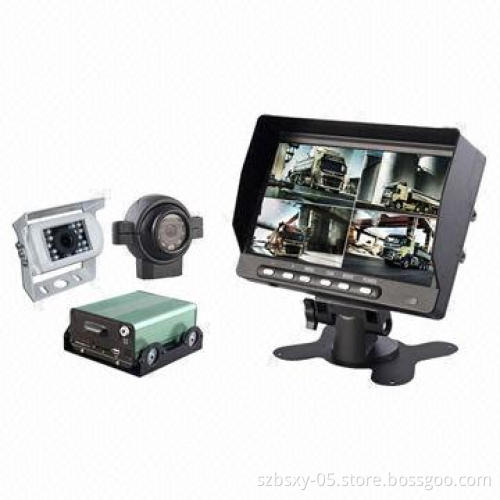

Car Mobile DVR Recorder System with Digital Car Monitor and Heavy-duty Camera for Bus

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Specifications:

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design
4 channel video and audio recording
Video formats: 1D1 (25fps) + 3CIF (25fps)
Alarm input: 4 alarm inputs, no alarm below 4V and high-levelalarm above 4V
Compression: H.264
Data storage: maximum supports 2TB SATA HDD and 64GB SDcard
Motion detection/timer switch/alarm recording
Dual shock-proof
Supports USB port
Operation temperature range: -30-80
Power: 6/32V DC
Languages: Chinese, English, Russian
Image device: 1/4-inch sharp CCD
Resolution: 420TVL
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6 x 2.7mm
Scanning system: 2:1 interlace
Sync system: internal
Horizontal sync frequency: 15.625/15.734kHz
Vertical sync frequency: 50/60Hz
Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
Video output: 1.0Vp-p, 75 Ohms
Gamma consumption: 0.45
AGC: auto
S/N ratio: better than 48dB
White balance: auto
Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds
BLC: auto
Product idiomatical performance:
- Lens: 2.5mm
- Lens angle: 120°
- Infrared LED light: 18 pieces
- IR distance: 15m
- Waterproof rate: IP68
- Dimension: 7-inch color LCD monitor
- Resolution: 800 x 3 (RGB) x 480P
- TV system: NTSC/PAL
