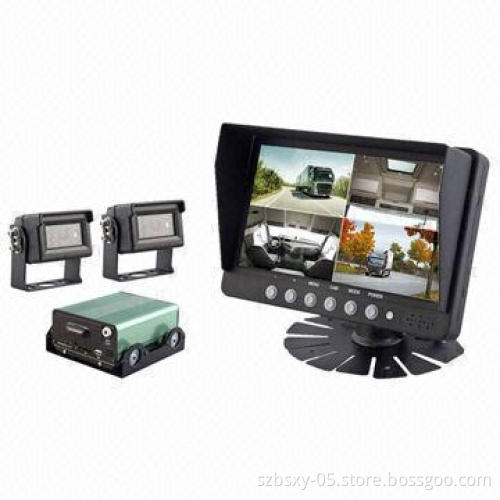

Car Mobile DVR Recorder System for Bus, with Digital Car Monitor and Car Camera

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design

4 channels video and audio recording

Video formats: 1D1 (25fps) + 3CIF (25fps)

Alarm input: 4 channels alarm input, no alarm below 4V andhigh-level alarm above 4V

Compression: H.264

Data storage: maximum supports 2TB SATA HDD and 64GB SDcard

Motion detection/timer switch/alarm recording

Dual shock-proof

Supports USB port

Operating temperature range: -30-80

Power: 6/32V DC

Language: Chinese/English/Russian

Image device: 1/4-inch Sharp CCD

Resolution: 420TV lines

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Synchronization system: internal

Horizontal synchronization frequency: 15.625/15.734kHz

Vertical synchronization frequency: 50/60Hz

Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2

Video output: 1.0Vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: auto

S/N ratio: better than 48dB

White balance: auto

Electronic shutter speed:

NTSC: 1/60-1/10,000 seconds
PAL: 1/50-1/10,000 seconds

BLC: auto

Products idiomatically performance:

Small sized
Lens: 2.5mm
Lens angle: 120°
Infrared LED light: 5 pieces
IR distance: 10m
Waterproof rate: IP69K
Dimensions: 7-inch color LCD monitors
TV system: NTSC/PAL auto
Resolution: 480 x 3 x (RGB) x 234 pixels
Brightness: 300cd/¡
Contrast: 300:1
Aspect ratio: 16:9
Viewing angle (U/D or R/L): 50/60, 70°
Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Supports 2 cameras video simultaneous input

Support 1 camera audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops

NTSC: 1/60-1/10,000 seconds

PAL: 1/50-1/10,000 seconds

Small sized

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 5 pieces

IR distance: 10m

Waterproof rate: IP69K

Dimensions: 7-inch color LCD monitors

TV system: NTSC/PAL auto

Resolution: 480 x 3 x (RGB) x 234 pixels

Brightness: 300cd/¡

Contrast: 300:1

Aspect ratio: 16:9

Viewing angle (U/D or R/L): 50/60, 70°

Rating: 20,000 hours
