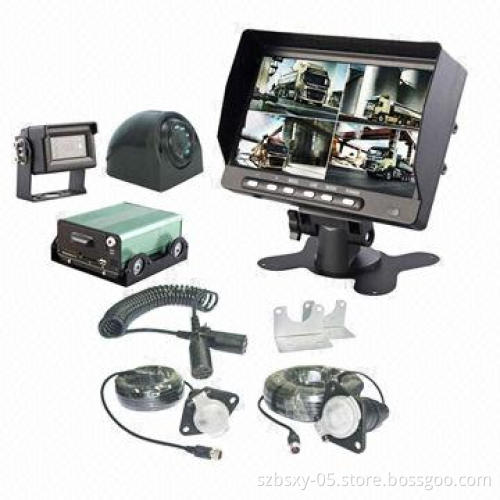

Car Security Camera System with HDD DVR for School Buses, 6/32V DC Power Supply
  • Car Security Camera System with HDD DVR for School Buses, 6/32V DC Power Supply
Car Security Camera System with HDD DVR for School Buses, 6/32V DC Power Supply

Car Security Camera System with HDD DVR for School Buses, 6/32V DC Power Supply

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Features:
    • Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design
    • 4 channels video and audio recording
    • Video formats: 1D1 (25fps) + 3CIF (25fps)
    • Alarm input: 4 channels alarm input, no alarm below 4V andhigh-level alarm above 4V
    • Compression: H.264
    • Data storage: maximum supports 2TB SATA HDD and 64GB SDcard
    • Motion detection/timer switch/alarm recording
    • Dual shock-proof
    • Supports USB port
  • Specifications:
    • Operating temperature range: -30-80
    • Power: 6/32V DC
    • Language: Chinese/English/Russian
    • Image device: 1/4-inch Sharp CCD
    • Resolution: 420TV lines
    • TV system: PAL/NTSC
    • Effective pixels: 512 x 582/512 x 492 pixels
    • Sensing area: 3.6 x 2.7mm
    • Scanning system: 2:1 interlace
    • Synchronization system: internal
    • Horizontal synchronization frequency: 15.625/15.734kHz
    • Vertical synchronization frequency: 50/60Hz
    • Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
    • Video output: 1.0Vp-p, 75 Ohms
    • Gamma consumption: 0.45
    • AGC: auto
    • S/N ratio: better than 48dB
    • White balance: auto
    • Electronic shutter speed:
      • NTSC: 1/60-1/10,000 seconds
      • PAL: 1/50-1/10,000 seconds
    • BLC: auto
  • Products idiomatically performance:
    • Small sized
    • Lens: 2.5mm
    • Lens angle: 120°
    • Infrared LED light: 9 pieces
    • IR distance: 10m
    • Waterproof rate: IP68
  • Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design
  • 4 channels video and audio recording
  • Video formats: 1D1 (25fps) + 3CIF (25fps)
  • Alarm input: 4 channels alarm input, no alarm below 4V andhigh-level alarm above 4V
  • Compression: H.264
  • Data storage: maximum supports 2TB SATA HDD and 64GB SDcard
  • Motion detection/timer switch/alarm recording
  • Dual shock-proof
  • Supports USB port
  • Operating temperature range: -30-80
  • Power: 6/32V DC
  • Language: Chinese/English/Russian
  • Image device: 1/4-inch Sharp CCD
  • Resolution: 420TV lines
  • TV system: PAL/NTSC
  • Effective pixels: 512 x 582/512 x 492 pixels
  • Sensing area: 3.6 x 2.7mm
  • Scanning system: 2:1 interlace
  • Synchronization system: internal
  • Horizontal synchronization frequency: 15.625/15.734kHz
  • Vertical synchronization frequency: 50/60Hz
  • Minimum illumination: 0 Lux (infrared lamps on) 0.1 Lux(day)/F1.2
  • Video output: 1.0Vp-p, 75 Ohms
  • Gamma consumption: 0.45
  • AGC: auto
  • S/N ratio: better than 48dB
  • White balance: auto
  • Electronic shutter speed:
    • NTSC: 1/60-1/10,000 seconds
    • PAL: 1/50-1/10,000 seconds
  • BLC: auto
  • NTSC: 1/60-1/10,000 seconds
  • PAL: 1/50-1/10,000 seconds
  • Small sized
  • Lens: 2.5mm
  • Lens angle: 120°
  • Infrared LED light: 9 pieces
  • IR distance: 10m
  • Waterproof rate: IP68
