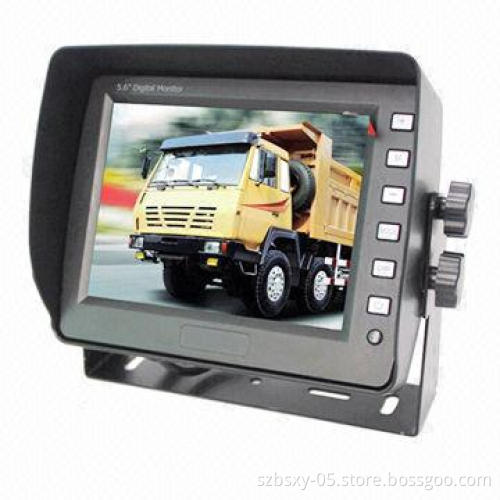

5.6-inch Digital Car Monitor for Crane Rear-view System, 12-32V Working Voltage
  • 5.6-inch Digital Car Monitor for Crane Rear-view System, 12-32V Working Voltage
5.6-inch Digital Car Monitor for Crane Rear-view System, 12-32V Working Voltage

5.6-inch Digital Car Monitor for Crane Rear-view System, 12-32V Working Voltage

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Specifications:
    • Dimensions: 5.6-inch
    • TV system: NTSC/PAL
    • Resolution: 640 x 3 xRGB x 480 pixels
    • Brightness: 250cd/m²
    • Contrast: 500: 1
    • Lattice distance (H x V): 0.0588 x 0.1764
    • Aspect ratio: 4:3
    • Viewing angle:
      • U: 50°
      • D: 70°
      • R/L: 70°
    • Rating: 20,000 hours
  • Features:
    • Products featured function
    • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
    • With remote control
    • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
    • Screen display mode can be switched the day mode and night modeby pressing button
    • Supports 2 cameras video simultaneous input
    • Supports 2 cameras audio simultaneous input
    • Normal or mirrored picture can be switched separately on eachcamera
    • Separate trigger control wire on each camera
    • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
    • The trigger delay time can be adjusted (0-4 seconds) on eachcamera
    • In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage
  • Specifications:
    • Working voltage: 12-32V
    • Working current: 800mA (with in 2 cameras)
    • Self-protect of the DC voltage at the short-circuit
    • Operating temperature: -10-+65
    • Storage temperature: -30-+80
    • Bracket option: U/S-shape
    • Outer dimensions: 154 x 123 x 30mm
  • Dimensions: 5.6-inch
  • TV system: NTSC/PAL
  • Resolution: 640 x 3 xRGB x 480 pixels
  • Brightness: 250cd/m²
  • Contrast: 500: 1
  • Lattice distance (H x V): 0.0588 x 0.1764
  • Aspect ratio: 4:3
  • Viewing angle:
    • U: 50°
    • D: 70°
    • R/L: 70°
  • Rating: 20,000 hours
  • U: 50°
  • D: 70°
  • R/L: 70°
  • Products featured function
  • Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
  • With remote control
  • Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control
  • Screen display mode can be switched the day mode and night modeby pressing button
  • Supports 2 cameras video simultaneous input
  • Supports 2 cameras audio simultaneous input
  • Normal or mirrored picture can be switched separately on eachcamera
  • Separate trigger control wire on each camera
  • Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
  • The trigger delay time can be adjusted (0-4 seconds) on eachcamera
  • In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage
  • Working voltage: 12-32V
  • Working current: 800mA (with in 2 cameras)
  • Self-protect of the DC voltage at the short-circuit
  • Operating temperature: -10-+65
  • Storage temperature: -30-+80
  • Bracket option: U/S-shape
  • Outer dimensions: 154 x 123 x 30mm
