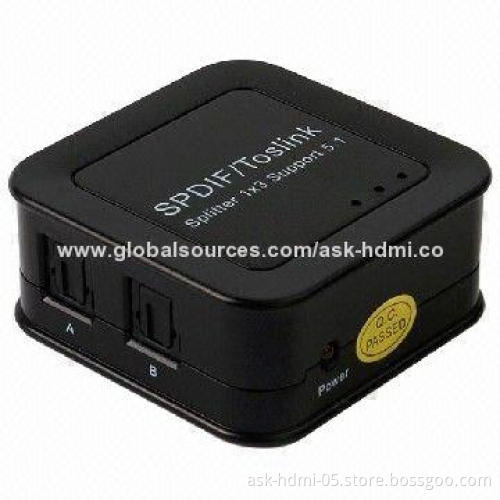

SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
  • SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
  • SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
  • SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
  • SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
  • SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
SPDIF/TosLink 1x3 Splitter with 100-240V AC Input
SPDIF/TosLink 1x3 Splitter with 100-240V AC Input

SPDIF/TosLink 1x3 Splitter with 100-240V AC Input

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device
    • Audio format support: LPCM2.0/DTS/Dolby-AC3
    • Supports signal retiming
    • Used optical fiber cable loss less the 0.2dBm, output distance is up to 40m
    • Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
    • No loss of quality
    • Installs in minutes
    • Need 5V DC/500mA power supply
  • Accessories with the machines list:
    • 5V power adapter
    • Operating user's manual
  • Specifications:
    • Support audio format: LPCM2.0/DTS/Dolby-AC3
    • Peak wavelength: 650nm
    • Maximum baud rate: 16Mbps
    • Output cable distance: ≤40m (use the optical fiber cable loss less the 0.2dBm)
    • Maximum working current: 100mA
    • Power adapter format:
    • Input: 100-240V AC ((50, 60Hz))
    • Output: 5V DC/500mA
    • Operating temperature range: 0 to +40℃
    • Operating humidity range: 5 to 90% RH (no condensation)
    • Dimensions (L x W x H): 54x54x23.5mm
    • Weight: 35g
  • One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device
  • Audio format support: LPCM2.0/DTS/Dolby-AC3
  • Supports signal retiming
  • Used optical fiber cable loss less the 0.2dBm, output distance is up to 40m
  • Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
  • No loss of quality
  • Installs in minutes
  • Need 5V DC/500mA power supply
  • 5V power adapter
  • Operating user's manual
  • Support audio format: LPCM2.0/DTS/Dolby-AC3
  • Peak wavelength: 650nm
  • Maximum baud rate: 16Mbps
  • Output cable distance: ≤40m (use the optical fiber cable loss less the 0.2dBm)
  • Maximum working current: 100mA
  • Power adapter format:
  • Input: 100-240V AC ((50, 60Hz))
  • Output: 5V DC/500mA
  • Operating temperature range: 0 to +40℃
  • Operating humidity range: 5 to 90% RH (no condensation)
  • Dimensions (L x W x H): 54x54x23.5mm
  • Weight: 35g
