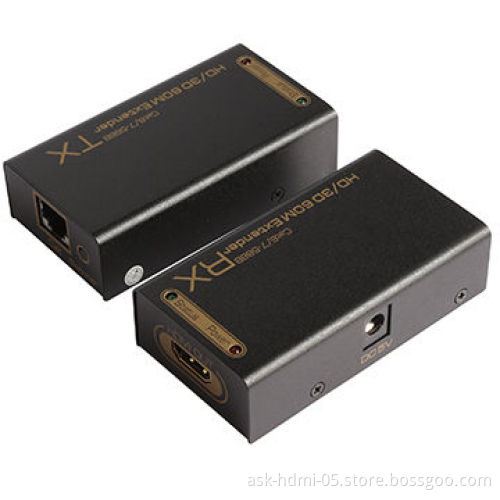

60m HDMI Extender by Single Cat6e Supports 3DNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Length of CAT-6 cable between Rx and TX: Up to 60 meters

HDMI input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output: LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth: 225MHz

Max baud rate: 6.75Gbps

Input video signal : 0.5~1.5Volts p-p

Output DDC signal: 5 Volts p-p (TT1L)

Input/output HDMI cable distance: ≤15m AWG26 HDMI standard cable

Max working current: 600mA

Power adapter format:

Operating temperature range: (-15 to 55℃)

Operating humidity range: 5 to 90%RH (no condensation)

Dimension (L x W x H): 82x44x22 (mm) (RX/TX)

Weight: 195g

Input: AC (50Hz, 60Hz) 100-240V

Output: DC 5V/1A (RX/TX)
